Butterfly valve - GGG40/PTFE/PTFE - DN50 - Wafer GN6/10/16 ANSI150 - PN10 - Pneumat single acting NC

Name: Butterfly valve - GGG40/PTFE/PTFE - DN50 - Wafer GN6/10/16 ANSI150 - PN10 - Pneumat single acting NC
SKU: BUWP.013.050
Price: 907.30 EUR
Availability: InStock

Reference : BUWP.013.050

Catalog Price :

€907.30

Tax excluded 21.00 %

Assemblage de composants en stock, nécessite un délai supplémentaire jusqu’à 3 jours ouvrables départ de notre magasin

Stock Luxembourg (Troisvierges)	2
Stock Belgium (Barchon)	3
Stock Belgium (Chaineux)	-
Manufacturer stock	-

Body material	Nodular cast iron (GGG40-50)
Sealing	PTFE
Type of connection	Wafer
Diameter of connection	DN50
GN	06/10/16
PN	10
Control pressure	Minimum 6 bar
Fluid working Temp	(-)40°C to (+)200°C
Operated	NC single-acting air operated
Compatibility - fluids	For chemical industry, aggressive liquids, acids, extra pure water, agro-food, pharmaceutical, sanitary, toxic and corrosive medium, stationery, chlorine production, mining industry and production of coloring substances
Customs duty number	8481-8085
Gross weight (kg)	0
Eclass	37010000
Country of origin	BE
UNSPSC Code	40140000
Actuator brand	Actreg

Description

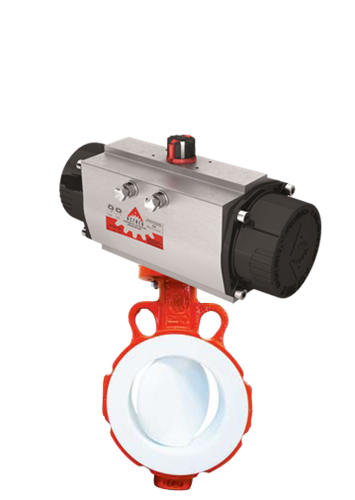

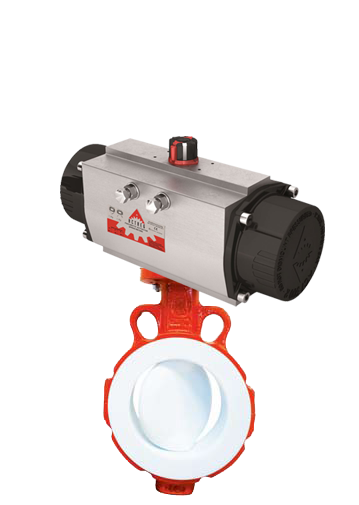

Pneumatically operated butterfly valve for aggressive fluids
- DN 50
- WAFER type with centering lugs
- Connection: to be placed between PN10/16 and ASME B16.5 class 150 flanges
- Maximum operating pressure 10 bar
- Two-piece body in ductile iron EN-GJS-400-18 (GGG40) epoxy coated
- Throttle with PTFE coated 1.4469 stainless steel axle
- PTFE cuff
- Fluid temperature range from -40°C to +200°C
- Dimensions according to ISO 5752/20, EN 558-1/20, API 609 category A
- Leak test according to EN 12266-1/P12 leak rate A
- Operation: Equipped with an Actreg ASR Series single-acting actuator
- Normally closed function
- Pneumatically operated
- Pilot pressure: minimum 6 bar
