Reference : BULP.001.200NO
Catalog Price :
€1,707.59
Tax excluded 21.00 %
Assemblage de composants en stock, nécessite un délai supplémentaire jusqu’à 3 jours ouvrables départ de notre magasin
| Body material | Nodular cast iron (GGG40-50) |
| Sealing | EPDM |
| Type of connection | LUG |
| Diameter of connection | DN200 |
| GN | 10 |
| PN | 16 |
| Control pressure | Minimum 6 bar |
| Fluid working Temp | (-)10°C to (+)120°C |
| Operated | NO single-acting air operated |
| Compatibility - fluids | For common compatible fluids |
| Gross weight (kg) | 0 |
| Eclass | 37010000 |
| UNSPSC Code | 40140000 |
| Actuator brand | Actreg |

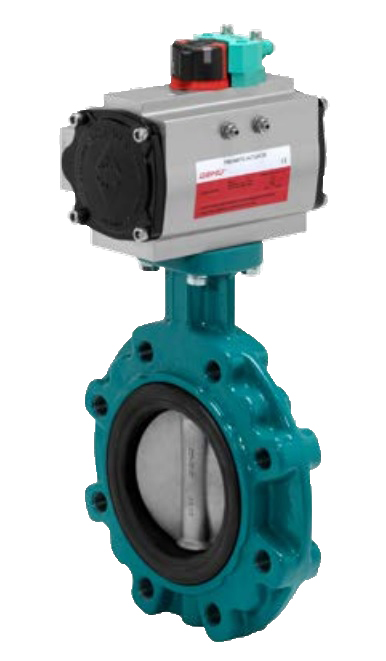

Butterfly valve :
- GGG40 Cast Iron Body
- EPDM sealing
- Stainless steel butterfly
- LUG connection in DN200
- PN10
- GN10
- Operation: equipped with a single-acting actuator
- Function: Normally open
- Pneumatically operated
- Pilot pressure: minimum 6 bar
- Fluid operating temperature: (-)10°C to (+)120°C
- GGG40 Cast Iron Body
- EPDM sealing
- Stainless steel butterfly
- LUG connection in DN200
- PN10
- GN10
- Operation: equipped with a single-acting actuator
- Function: Normally open
- Pneumatically operated
- Pilot pressure: minimum 6 bar
- Fluid operating temperature: (-)10°C to (+)120°C
