Reference : BUWM.006.125
Catalog gross price :
€2,145.68
Tax excluded 21.00 %
| Body material | Nodular cast iron (GGG40-50) |
| Sealing | PTFE with silicone core |
| Type of connection | Wafer |
| Diameter of connection | DN125 |
| GN | 10/16 |
| PN | 16 |
| Fluid working Temp | (-)25°C to (+)200°C |
| Operated | Manual by notched lever |
| Compatibility - fluids | For aggressive fluids in a moderately aggressive environment |
| Customs duty number | 8481-8059 |
| Gross weight (kg) | 9,5 |
| Eclass | 37010000 |
| Country of origin | ES |
| UNSPSC Code | 40140000 |

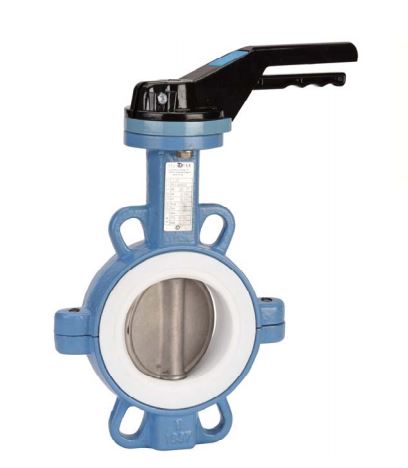

BUTTERFLY V. 1145 PN10/16 ANSI150 DN125 Wafer GGG50/CF8M/PTFE
