Non contractual picture
Product details Associated products

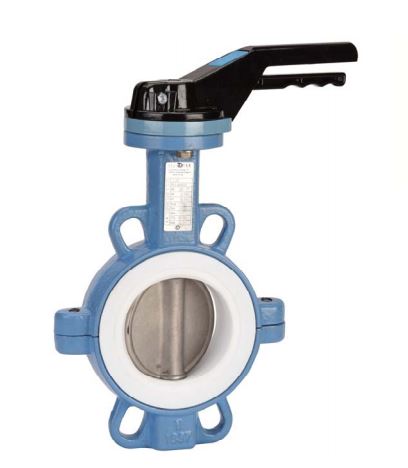

Butterfly valve - GGG50 Cast Iron - PTFE - DN32 - Wafer GN10/16 - PN16 - Hand lever - 200°C

Reference : BUWM.006.032

Catalog Price :

€788.72
Tax excluded 21.00 %
Stock Belgique (Liège) -
Stock Belgique (Hainaut) -
Stock Luxembourg (Troisvierges) -
Stock usine Quantity and short lead time
to be confirmed on request
Usual lead time :
6-10 working days
Body material Nodular cast iron (GGG40-50)
Sealing PTFE with silicone core
Type of connection Wafer
Diameter of connection DN32
GN 10/16
PN 16
Fluid working Temp (-)25°C to (+)200°C
Operated Manual by notched lever
Compatibility - fluids For aggressive fluids in a moderately aggressive environment
Customs duty number 8481-8059
Gross weight (kg) 3
Eclass 37010000
Country of origin ES
UNSPSC Code 40140000
BUTTERFLY V.1145 PN10/16 ANSI150 DN32-40 Wafer GGG50/CF8M/PTFE
