Reference : CHWX.006.100
Catalog Price :
Body material | 316 Stainless Steel |
Sealing | FPM (Viton®) |
Type of connection | Wafer |
Diameter of connection | DN100 |
GN | 25 |
PN | 25 |
Fluid working Temp | (-)10°C to (+)180°C |
Operation | Horizontal or vertical mounting with ascending fluid |

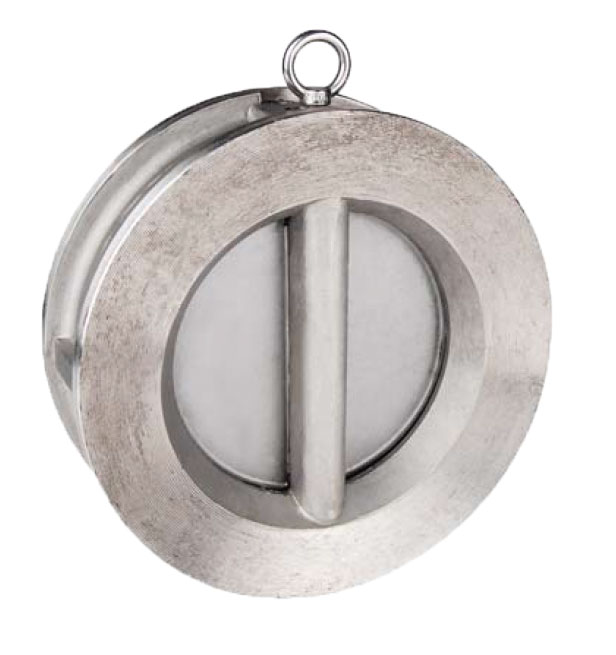

Specifications | Swing check |
Compatibility - fluids | For chemical, pharmaceutical, petrochemical and hydraulic industry |
Customs duty number | 8481-3099 |
Gross weight (kg) | 5,3 |
Eclass | 37010000 |
Country of origin | CN |
UNSPSC Code | 40140000 |
