Reference : CHWX.006.065
Catalog Price :
€364.42
Tax excluded 21.00 %
| Body material | 316 Stainless Steel |
| Sealing | FPM (Viton®) |
| Type of connection | Wafer |
| Diameter of connection | DN65 |
| GN | 25 |
| PN | 25 |
| Fluid working Temp | (-)10°C to (+)180°C |
| Operation | Horizontal or vertical mounting with ascending fluid |
| Specifications | Swing check |
| Compatibility - fluids | For chemical, pharmaceutical, petrochemical and hydraulic industry |
| Customs duty number | 8481-3099 |
| Gross weight (kg) | 2,5 |
| Eclass | 37010000 |
| Country of origin | CN |
| UNSPSC Code | 40140000 |

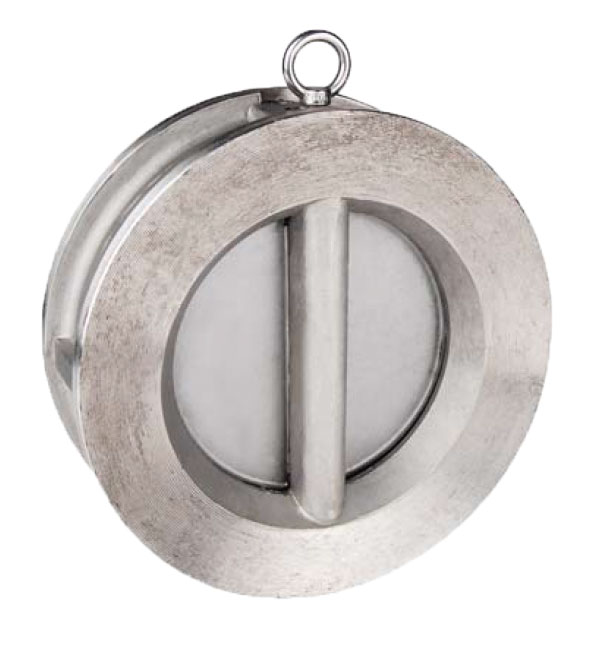

Double check valve:
- 316 stainless steel body
- FPM (Viton®) sealing
- Wafer connection in DN65
- PN16
- GN25
- Operation: horizontal or vertical installation with rising fluid
- Without control
- Operating temperature of the fluid : (-)10°C to (+)180°C
- 316 stainless steel body
- FPM (Viton®) sealing
- Wafer connection in DN65
- PN16
- GN25
- Operation: horizontal or vertical installation with rising fluid
- Without control
- Operating temperature of the fluid : (-)10°C to (+)180°C
