Reference : CHFX.003.100
Catalog Price :
€616.18
Tax excluded 21.00 %
| Body material | GG25 cast iron |
| Sealing | Brass |
| Type of connection | With flanges |
| Diameter of connection | DN100 |
| GN | 10/16 |
| PN | 16 |
| Fluid working Temp | (-)10°C to (+)120°C |
| Operation | Horizontal or vertical mounting with ascending fluid |
| Specifications | Swing check |
| Compatibility - fluids | For water supply, distribution and evacuation networks |
| Customs duty number | 8481-3091 |
| Gross weight (kg) | 28,4 |
| Eclass | 37010000 |
| Country of origin | CN |
| UNSPSC Code | 40140000 |

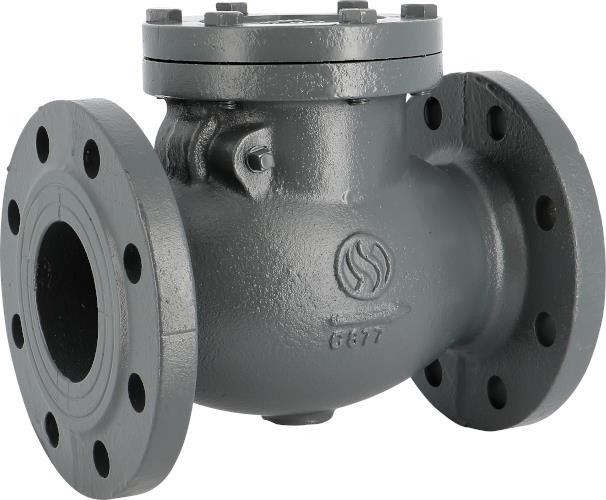

Swing check valve :
- Cast iron body GG25
- Brass seal
- Flanged connection in DN100
- PN16
- GN10/16
- Operation: horizontal or vertical installation with rising fluid
- Without control
- Operating temperature of the fluid : (-)10°C to (+)120°C
- Cast iron body GG25
- Brass seal
- Flanged connection in DN100
- PN16
- GN10/16
- Operation: horizontal or vertical installation with rising fluid
- Without control
- Operating temperature of the fluid : (-)10°C to (+)120°C
