Reference : CHFX.002.300
Catalog gross price :
€3,358.08
Tax excluded 21.00 %
| Body material | GG25 cast iron |
| Sealing | EPDM |
| Type of connection | With flanges |
| Diameter of connection | DN300 |
| GN | 16 |
| PN | 16 |
| Fluid working Temp | (-)10°C to (+)110°C |
| Operation | Mounting all positions |
| Specifications | Disck |
| Compatibility - fluids | For water supply, distribution and evacuation networks |
| Customs duty number | 8481-3091 |
| Gross weight (kg) | 145,5 |
| Eclass | 37010000 |
| Country of origin | CN |
| UNSPSC Code | 40140000 |

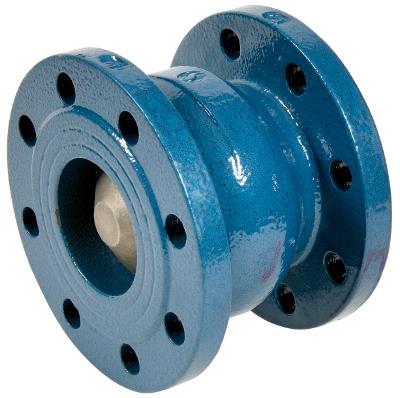

Check valve with disk :
- Body in GG25 cast iron
- EPDM sealing
- Flanged connection in DN300
- PN16
- GN16
- Operation: all position mounting
- Without control
- Operating temperature of the fluid : (-)10°C to (+)110°C
- Body in GG25 cast iron
- EPDM sealing
- Flanged connection in DN300
- PN16
- GN16
- Operation: all position mounting
- Without control
- Operating temperature of the fluid : (-)10°C to (+)110°C
