Reference : CHWX.005.100
Brand reference : 2401 12
Catalog Price :
€88.45
Tax excluded 21.00 %
| Body material | GG25 cast iron |
| Sealing | NBR |
| Type of connection | Wafer |
| Diameter of connection | DN100 |
| GN | 10/16 |
| PN | 16 |
| Fluid working Temp | (-)10°C to (+)90°C |
| Operation | Mounting all positions |
| Specifications | Swing check |
| Compatibility - fluids | For water supply, distribution and evacuation networks |
| Customs duty number | 8481-3091 |
| Gross weight (kg) | 4,1 |
| Eclass | 37010000 |
| Country of origin | ES |
| UNSPSC Code | 40140000 |

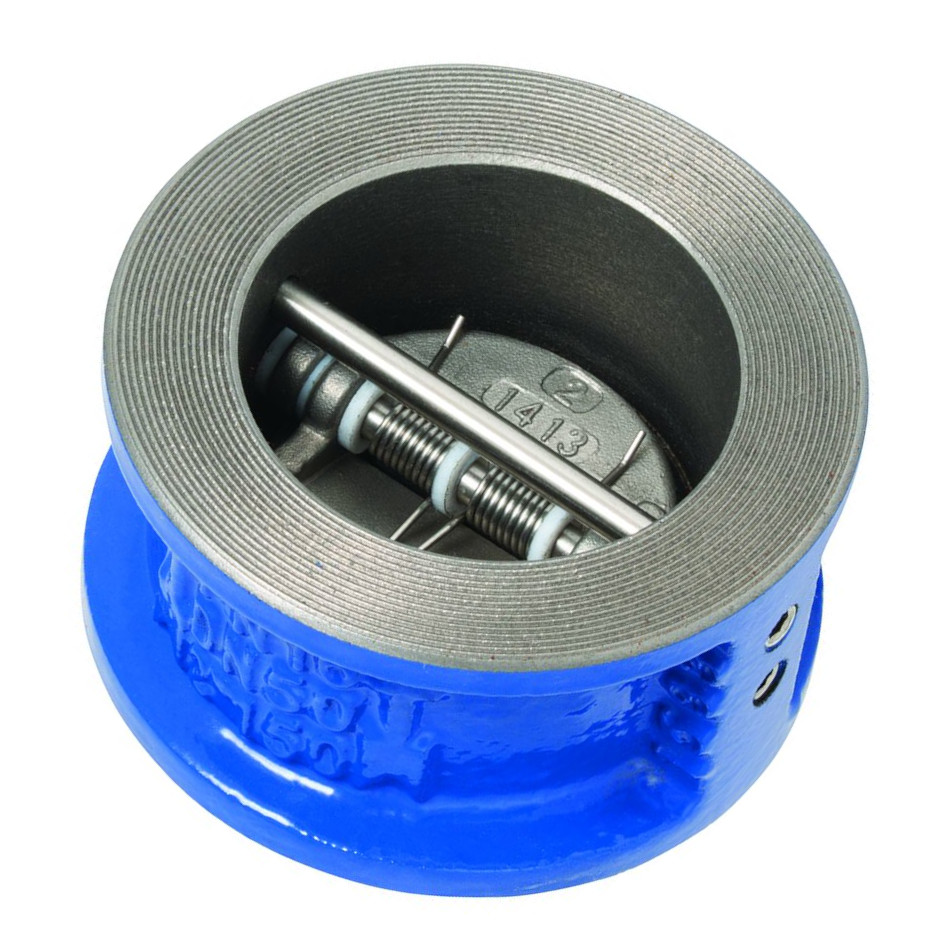

Double check valve:
- Body in GG25 cast iron
- NBR sealing
- Wafer connection in DN100
- PN16
- GN10/16
- Operation: mounting in any position
- Without control
- Operating temperature of the fluid : (-)10°C to (+)90°C
- Body in GG25 cast iron
- NBR sealing
- Wafer connection in DN100
- PN16
- GN10/16
- Operation: mounting in any position
- Without control
- Operating temperature of the fluid : (-)10°C to (+)90°C
