Reference : CHWX.005.300
Brand reference : 2401 20
Catalog Price :
€634.98
Tax excluded 21.00 %
| Body material | GG25 cast iron |
| Sealing | NBR |
| Type of connection | Wafer |
| Diameter of connection | DN300 |
| GN | 10/16 |
| PN | 16 |
| Fluid working Temp | (-)10°C to (+)90°C |
| Operation | Mounting all positions |
| Specifications | Swing check |
| Compatibility - fluids | For water supply, distribution and evacuation networks |
| Customs duty number | 8481-3091 |
| Gross weight (kg) | 42,5 |
| Eclass | 37010000 |
| Country of origin | ES |
| UNSPSC Code | 40140000 |

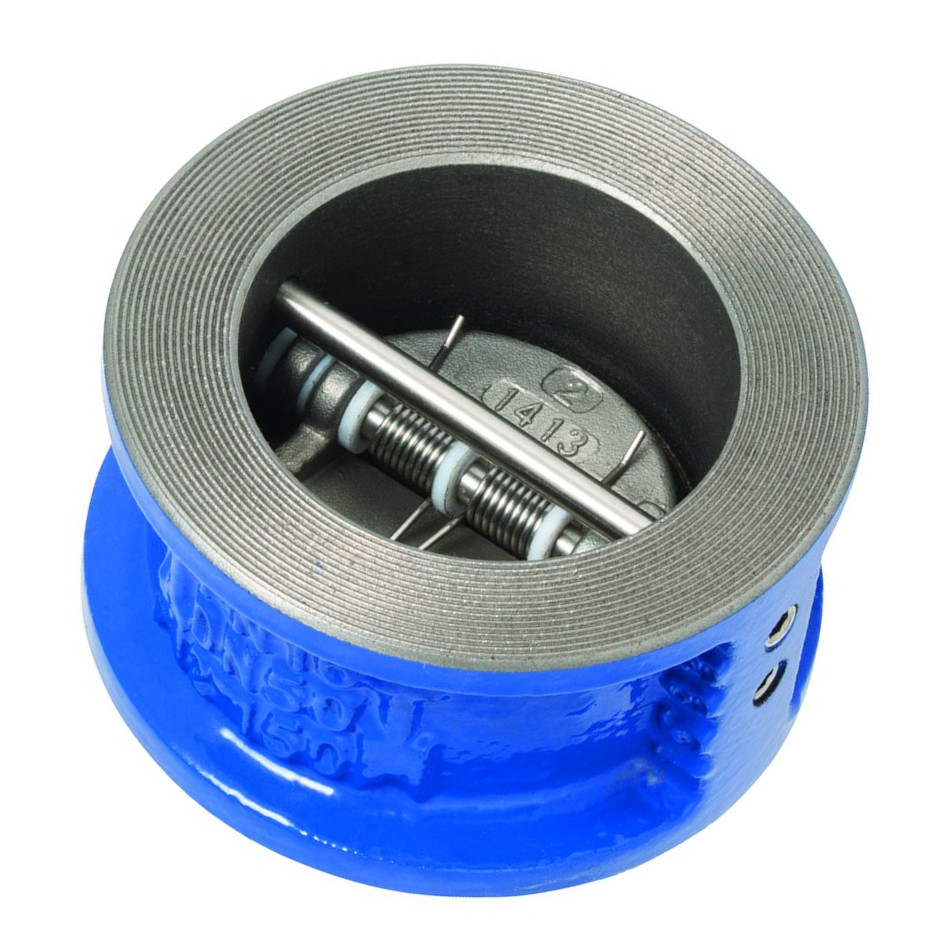

Cast Iron Double Check Valve
- DN 300
- WAFER type
- Connection between flanges according to EN 1092 PN10/16 and ANSI 150
- Maximum operating pressure 16 bar
- Flow coefficient Kv 2300 m³/h
- EN-GJL-250 cast iron body with epoxy paint
- Wings in stainless steel 1.4408
- Vulcanized seat in NBR
- Service temperature range from -10°C to +100°C
- Body thickness according to EN 558-1
- Installation in vertical, horizontal and inclined position
- DN 300
- WAFER type
- Connection between flanges according to EN 1092 PN10/16 and ANSI 150
- Maximum operating pressure 16 bar
- Flow coefficient Kv 2300 m³/h
- EN-GJL-250 cast iron body with epoxy paint
- Wings in stainless steel 1.4408
- Vulcanized seat in NBR
- Service temperature range from -10°C to +100°C
- Body thickness according to EN 558-1
- Installation in vertical, horizontal and inclined position
