Reference : CHWX.008.100
Brand reference : 2406 12
Catalog Price :
€158.22
Tax excluded 21.00 %
| Body material | 316 Stainless Steel |
| Sealing | FPM (Viton®) |
| Type of connection | Wafer |
| Diameter of connection | DN100 |
| GN | 10/16 |
| PN | 16 |
| Fluid working Temp | (-)20°C to (+)180°C |
| Operation | Horizontal or vertical mounting with ascending fluid |
| Specifications | Swing check |
| Compatibility - fluids | For chemical, pharmaceutical, petrochemical and hydraulic industry |
| Customs duty number | 8481-3099 |
| Gross weight (kg) | 2,3 |
| Eclass | 37010000 |
| Country of origin | ES |
| UNSPSC Code | 40140000 |

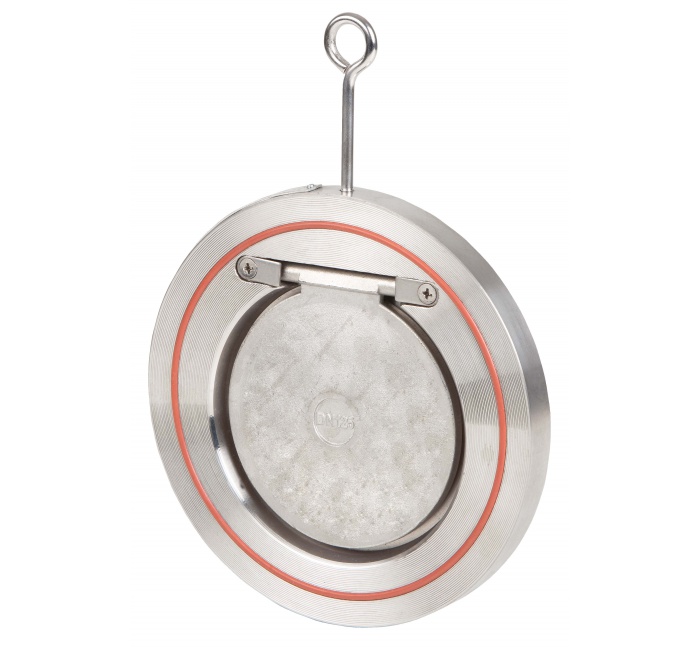

Single-leaf stainless steel check valve type WAFER
- DN 100
- Installation between flanges EN 1092 PN10/16 & ANSI150
- Maximum operating pressure 16 bar
- Flow coefficient Kv : 248 m³/h
- Body and leaf made of stainless steel 1.4408 (CF8M)
- FKM (Viton®) sealing
- Fluid temperature range -20°C to +180°C
- Body thickness 18mm
- Operation: horizontal or vertical mounting with rising fluid
- With removable mounting ring
- DN 100
- Installation between flanges EN 1092 PN10/16 & ANSI150
- Maximum operating pressure 16 bar
- Flow coefficient Kv : 248 m³/h
- Body and leaf made of stainless steel 1.4408 (CF8M)
- FKM (Viton®) sealing
- Fluid temperature range -20°C to +180°C
- Body thickness 18mm
- Operation: horizontal or vertical mounting with rising fluid
- With removable mounting ring
