Reference : CHWX.003.250
Catalog Price :
€519.53
Tax excluded 21.00 %
| Body material | Steel |
| Sealing | EPDM |
| Type of connection | Wafer |
| Diameter of connection | DN250 |
| GN | 16 |
| PN | 10 |
| Fluid working Temp | (-)10°C to (+)110°C |
| Operation | Horizontal or vertical mounting with ascending fluid |
| Specifications | Swing check |
| Compatibility - fluids | For water supply, distribution and evacuation networks |
| Customs duty number | 8481-3091 |
| Gross weight (kg) | 14,6 |
| Eclass | 37010000 |
| Country of origin | CN |
| UNSPSC Code | 40140000 |

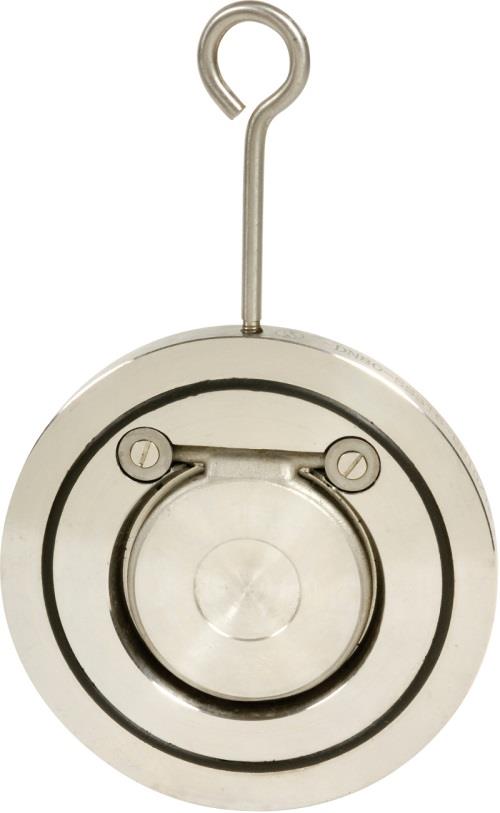

Swing check valve :
- Steel body
- EPDM sealing
- Wafer connection in DN250
- PN10
- GN16
- Operation: horizontal or vertical installation with rising fluid
- Without control
- Operating temperature of the fluid : (-)10°C to (+)110°C
- Steel body
- EPDM sealing
- Wafer connection in DN250
- PN10
- GN16
- Operation: horizontal or vertical installation with rising fluid
- Without control
- Operating temperature of the fluid : (-)10°C to (+)110°C
