Reference : CHWX.002.100
Catalog gross price :
€72.62
Tax excluded 21.00 %
| Body material | Steel |
| Sealing | NBR |
| Type of connection | Wafer |
| Diameter of connection | DN100 |
| GN | 10/16 |
| PN | 16 |
| Fluid working Temp | (-)10°C to (+)80°C |
| Operation | Montage horizontal ou vertical avec fluide ascend |
| Specifications | Swing check |
| Compatibility - fluids | Pour réseaux d'adduction, de distribution et d'éva |
| Customs duty number | 8481-3091 |
| Gross weight (kg) | 2,256 |
| Eclass | 37010000 |
| Country of origin | CN |
| UNSPSC Code | 40140000 |

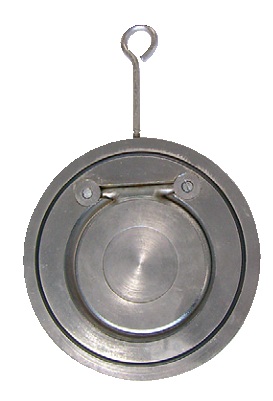

Swing check valve :
- Steel body
- NBR sealing
- Wafer connection in DN100
- PN16
- GN10/16
- Operation: horizontal or vertical installation with rising fluid
- Without control
- Operating temperature of the fluid : (-)10°C to (+)80°C
- Steel body
- NBR sealing
- Wafer connection in DN100
- PN16
- GN10/16
- Operation: horizontal or vertical installation with rising fluid
- Without control
- Operating temperature of the fluid : (-)10°C to (+)80°C
