Reference : 88122603
Catalog gross price :
€18.75
Tax excluded 21.00 %
| Specifications | LED connector |
| Body material | PA (polyamid) - charged with glass fibers |
| Sealing | NBR |
| Voltage | 24/DC - 24/50 |
| Ambient Temp | (-)40°C to (+)80°C |
| Compatibility - fluids | Air or neutral gas, filtered, lubricated or not |
| Customs duty number | 8542-9000 |
| Gross weight (kg) | 0,029 |
| Eclass | 27290000 |
| Country of origin | FR |
| UNSPSC Code | 27131700 |

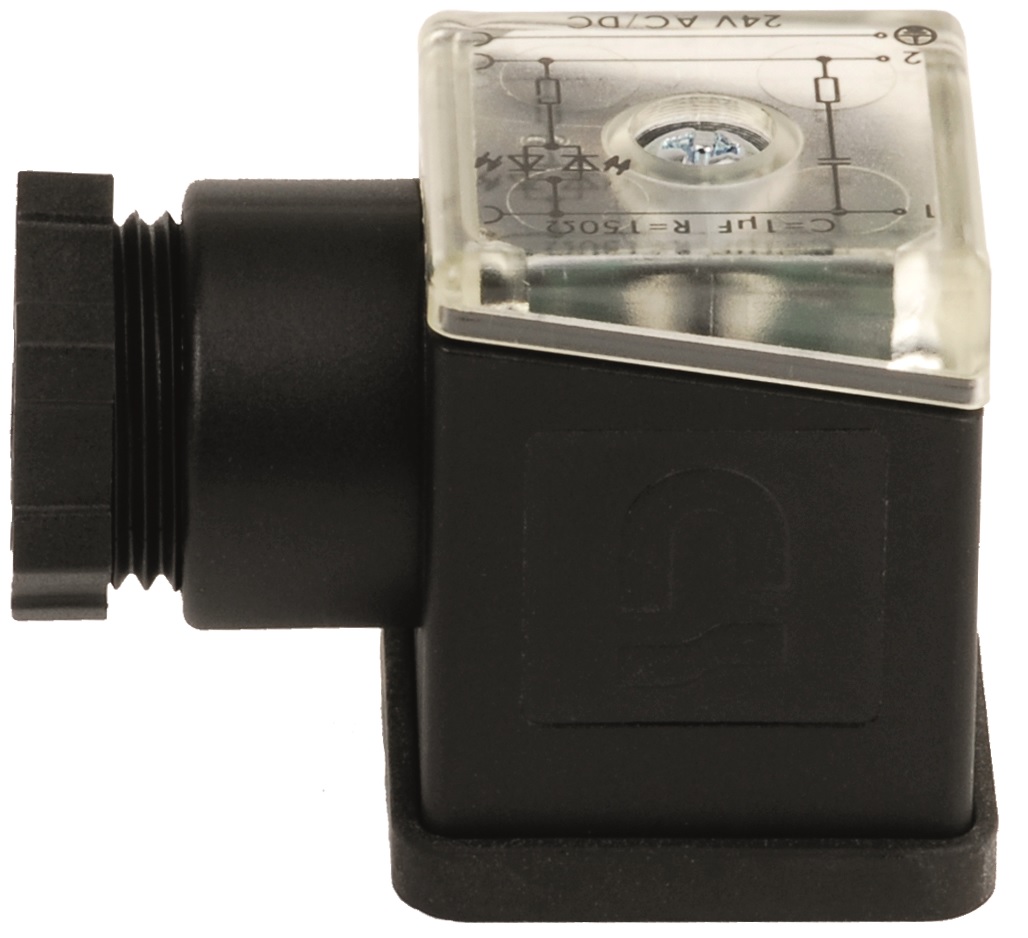

Plug-in connector with integrated display and electrical protection
- Size 30
- Compliance: ISO 4400 / EN 175301-803, form A
- Distance between contacts 18mm
- Number of pins: 2 + earth
- IP65 electrical protection (EN 60529)
- Housing in glass-fibre reinforced polyamide with NBR seal
- 1.5mm² conductor cross-section
- Voltage 24V DC - 24V 50Hz
- Operating temperature range -40°C to +80°C
- Cable gland for Ø6 to 10mm cable
- With RC, RC circuit absorbing the coil choke
- With LED, light-emitting diode, to indicate presence of voltage at coil terminals
- Size 30
- Compliance: ISO 4400 / EN 175301-803, form A
- Distance between contacts 18mm
- Number of pins: 2 + earth
- IP65 electrical protection (EN 60529)
- Housing in glass-fibre reinforced polyamide with NBR seal
- 1.5mm² conductor cross-section
- Voltage 24V DC - 24V 50Hz
- Operating temperature range -40°C to +80°C
- Cable gland for Ø6 to 10mm cable
- With RC, RC circuit absorbing the coil choke
- With LED, light-emitting diode, to indicate presence of voltage at coil terminals
