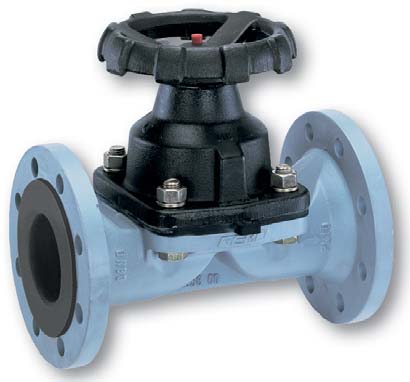

Non contractual picture
Associated products Associated categories

Diaphragm valve - GG25 Cast Iron body - EPDM - DN125 - Flanges GN16 - (+)90°C - Manual wheel

Reference : 675125D882906

Brand reference : 88664029

Catalog Price :

€855.82
Tax excluded 21.00 %
Stock Belgique (Liège) -
Stock Belgique (Hainaut) -
Stock Luxembourg (Troisvierges) -
Stock usine Quantity and short lead time
to be confirmed on request
Usual lead time :
8 weeks
Body material GG25 cast iron
Sealing EPDM
Type of connection With flanges
Diameter of connection DN125
GN 16
PN 10
Fluid working Temp (-)20°C to (+)90°C
Operated Manual by handwheel
Specifications Standard bore
Compatibility - fluids For common compatible fluids
Customs duty number 8481-8087
Gross weight (kg) 46,321
Eclass 37010000
UNSPSC Code 40140000
