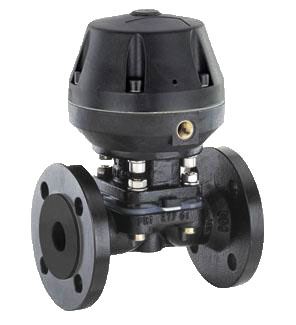

Diaphragm valve - GGG40 Cast Iron + ebonite body - NBR - DN20 - Flanges GN16 - +100°C - Pneumatic NC

Reference : 62020D883210KN

Brand reference : 88939971

Catalog Price :

€532.14

Tax excluded 21.00 %

Stock Belgique (Liège)	-
Stock Belgique (Hainaut)	-
Stock Luxembourg (Troisvierges)	-
Stock usine	Quantity and short lead time to be confirmed on request

Body material	GGG40 cast iron
Sealing	NBR
Type of connection	With flanges
Diameter of connection	DN20
GN	16
PN	10
Control pressure	5,5 to 7 bar
Fluid working Temp	(-)10°C to (+)100°C
Operated	NC single-acting air operated
Specifications	Standard bore
Compatibility - fluids	For common compatible fluids
Customs duty number	8481-8087
Gross weight (kg)	0
Eclass	37010000
UNSPSC Code	40140000
