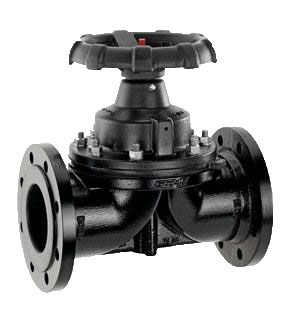

Diaphragm valve - GGG40 Cast Iron + ebonite body - NBR - DN40 - Flanges GN16 - +100°C - Manual wheel

Reference : 67540D88320

Brand reference : 88366607

Catalog Price :

€280.96

Tax excluded 21.00 %

Stock Belgique (Liège)	-
Stock Belgique (Hainaut)	-
Stock Luxembourg (Troisvierges)	-
Stock usine	Quantity and short lead time to be confirmed on request

Usual lead time :
2 weeks

Body material	GGG40 cast iron
Sealing	NBR
Type of connection	With flanges
Diameter of connection	DN40
GN	16
PN	10
Fluid working Temp	(-)10°C to (+)100°C
Operated	Manual by handwheel
Specifications	Standard bore
Compatibility - fluids	For common compatible fluids
Customs duty number	8481-8087
Gross weight (kg)	8,8
Eclass	37010000
UNSPSC Code	40140000

Documents

4520-vannes_membranes_metalliques.pdf
