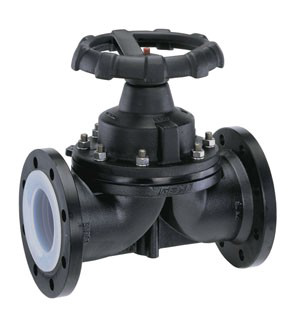

Diaphragm valve - GGG40 Cast Iron + PTFE body - PTFE/EPDM - DN20-Flanges GN16 - Manual wheel

Reference : 67520D8175E0

Brand reference : 88096421

Price upon request Contact us

Stock Luxembourg (Troisvierges)	-
Stock Belgium (Barchon)	-
Stock Belgium (Chaineux)	-
Manufacturer stock	-

Usual lead time :
3 weeks

Body material	GGG40 cast iron
Sealing	PTFE/EPDM
Type of connection	With flanges
Diameter of connection	DN20
GN	16
PN	10
Fluid working Temp	(-)10°C to (+)100°C
Operated	Manual by handwheel
Specifications	Standard bore
Compatibility - fluids	For common compatible fluids
Customs duty number	8481-8087
Gross weight (kg)	3,512
Eclass	37010000
UNSPSC Code	40140000
