Non contractual picture
Associated products Associated categories

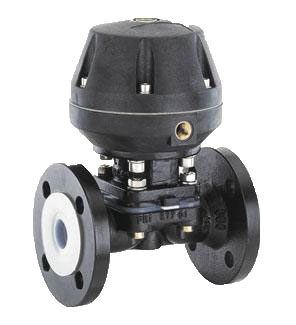

Diaphragm valve - GGG40 Cast Iron + PTFE body - PTFE/EPDM - DN32-Flanges GN16 - Pneumatic NC

Reference : 62032D8175E11/N

Brand reference : 88271486

Price upon request Contact us
Stock Belgique (Liège) -
Stock Belgique (Hainaut) -
Stock Luxembourg (Troisvierges) -
Stock usine Quantity and short lead time
to be confirmed on request
Usual lead time :
2 weeks
Body material GGG40 cast iron
Sealing PTFE/EPDM
Type of connection With flanges
Diameter of connection DN32
GN 16
PN 6
Control pressure 5,5 to 7 bar
Fluid working Temp (-)10°C to (+)150°C
Operated NC single-acting air operated
Specifications Standard bore
Compatibility - fluids For common compatible fluids
Customs duty number 8481-8087
Gross weight (kg) 9,279
Eclass 37010000
UNSPSC Code 40140000
