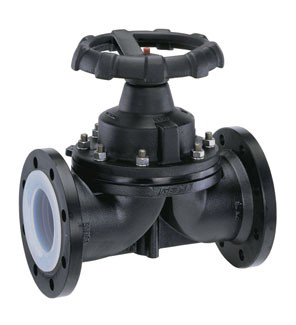

Diaphragm valve - GGG40 Cast Iron + PTFE body - PTFE/EPDM - DN65-Flanges GN16 - Manual wheel

Reference : 67565D8175403

Brand reference : 88664005

Catalog Price :

€1,086.28

Tax excluded 21.00 %

Stock Belgique (Liège)	-
Stock Belgique (Hainaut)	-
Stock Luxembourg (Troisvierges)	-
Stock usine	Quantity and short lead time to be confirmed on request

Usual lead time :
10 weeks

Body material	GGG40 cast iron
Sealing	PTFE/EPDM
Type of connection	With flanges
Diameter of connection	DN65
GN	16
PN	6
Fluid working Temp	(-)10°C to (+)100°C
Operated	Manual by handwheel
Specifications	Standard bore
Compatibility - fluids	For common compatible fluids
Customs duty number	8481-8087
Gross weight (kg)	19
Eclass	37010000
Country of origin	DE
UNSPSC Code	40140000

Documents

1980-vannes_membranes_metalliques.pdf
