Reference : BUWM.012.200
Brand reference : 2E-5590B 200 GEARBOX
Catalog gross price :
€1,476.00
Tax excluded 21.00 %
| Body material | Carbon steel |
| Sealing | PTFE filled with 15% glass fiber |
| Type of connection | Wafer |
| Diameter of connection | DN200 |
| GN | 10/16/25/40 |
| PN | 40 |
| Fluid working Temp | (-)30°C to (+)200°C |
| Operated | Manual by handwheel gear reducer |
| Compatibility - fluids | Pour eau, eau froide, gaz naturel, essence, air, h |
| Customs duty number | 8481-8059 |
| Gross weight (kg) | 31,9 |
| Eclass | 37010000 |
| Country of origin | CZ |
| UNSPSC Code | 40140000 |

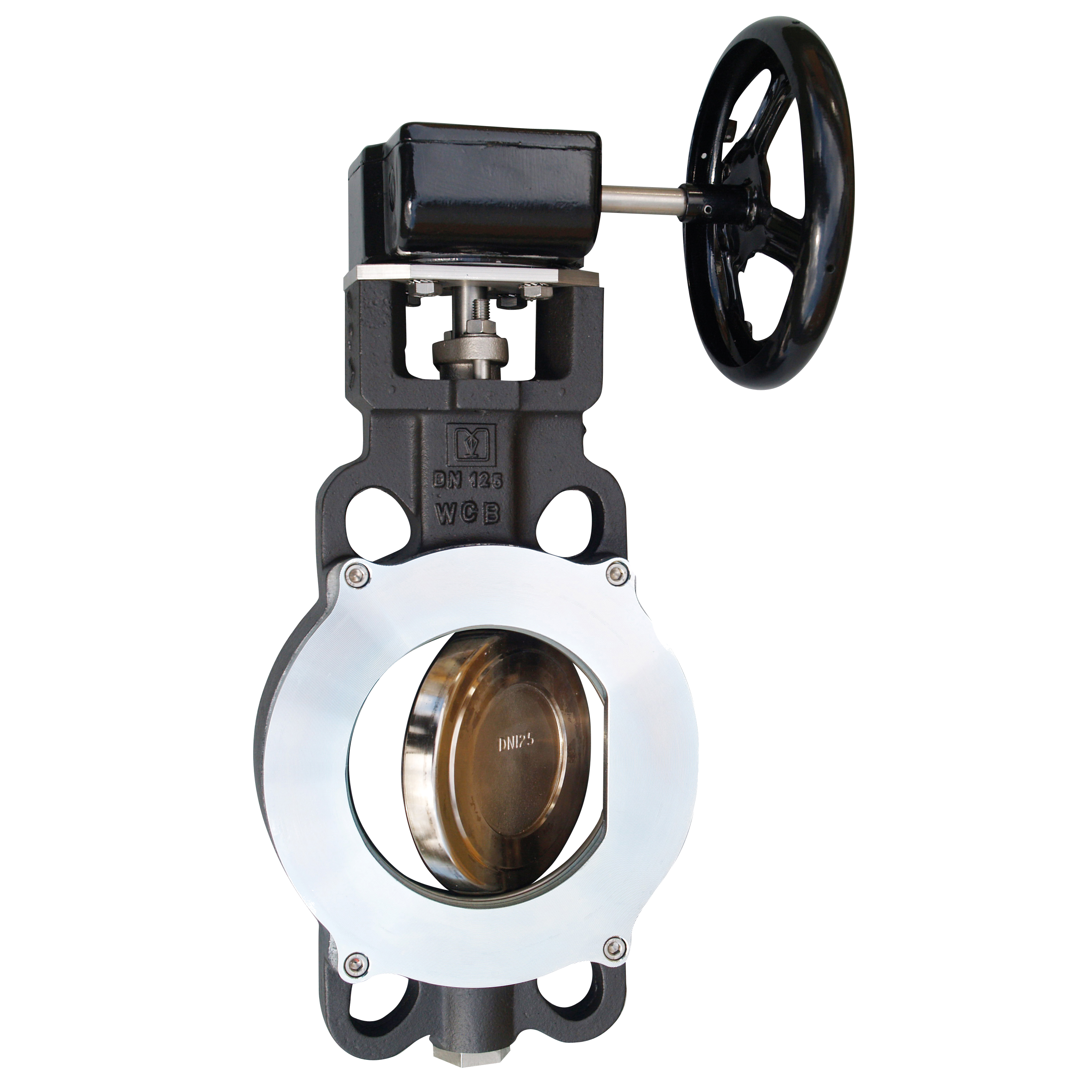

High-performance double-offset carbon steel butterfly valve
- DN 200
- WAFER type with centering lugs
- Flange connection according to EN 1092-1 PN10/16/25/40 & ANSI 150/300
- Maximum operating pressure 40 bar
- Suitable for vacuum applications down to 0.01 bar absolute
- Body made of carbon steel 1.0625 (A216 WCB)
- Disc made of stainless steel 1.4027 (ASTM CA-40)
- Seat made of R-PTFE reinforced with 25% glass fiber
- Fluid operating temperature: -29°C to +200°C
- Manually operated by geared handwheel
- Flange spacing according to EN 558 series 20
- DN 200
- WAFER type with centering lugs
- Flange connection according to EN 1092-1 PN10/16/25/40 & ANSI 150/300
- Maximum operating pressure 40 bar
- Suitable for vacuum applications down to 0.01 bar absolute
- Body made of carbon steel 1.0625 (A216 WCB)
- Disc made of stainless steel 1.4027 (ASTM CA-40)
- Seat made of R-PTFE reinforced with 25% glass fiber
- Fluid operating temperature: -29°C to +200°C
- Manually operated by geared handwheel
- Flange spacing according to EN 558 series 20
