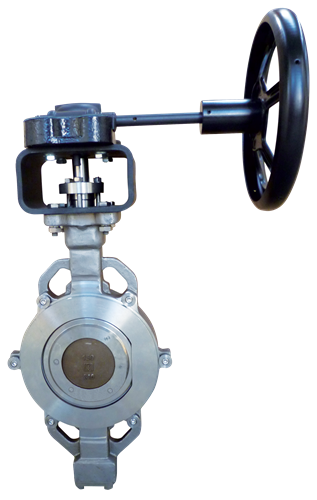

Double offset butterfly valve - Stainless Steel body and butterfly - R-PTFE - DN100 - WAFER - PN25

Reference : BUWM.013.100

Brand reference : 2E-5490B 100 LEVER

Catalog Price :

937.00
Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)

-

Stock Belgium (Barchon)

-

Stock Belgium (Chaineux)

Quantity and short lead time
to be confirmed on request
Manufacturer stock Quantity and short lead time
to be confirmed on request
Usual lead time :
11-15 working days
Body material Stainless Steel
Sealing PTFE filled with 15% glass fiber
Type of connection Wafer
Diameter of connection DN100
GN 10/16/25/40
PN 50
Fluid working Temp (-)50°C to (+)200°C
Operated Manual by notched lever
Compatibility - fluids For water, cold water, natural gas, gasoline, air, oil, kerosene, industrial line, steam and vacuum
Customs duty number 8481-8059
Gross weight (kg) 9,76
Eclass 37010000
Country of origin CZ
UNSPSC Code 40140000
Wafer Type

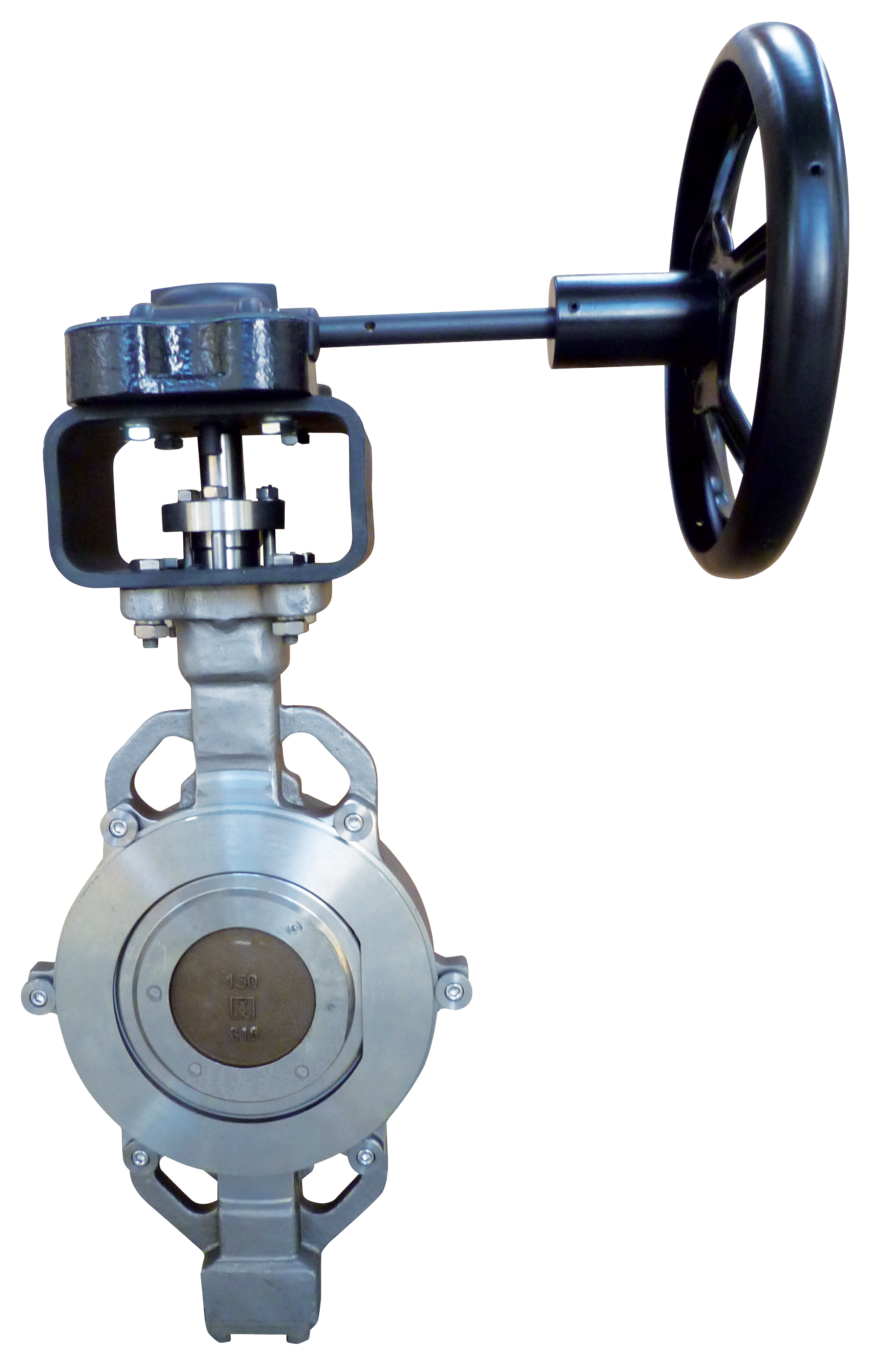

Double offset butterfly valves type 2E-5490
suitable for installation between flanges according to EN 1092-1 PN25
Design acc. to EN 593
Face to face dimensions acc. to ISO 5752-20
Tightness rate A acc. to EN 12266-1
Body: stainless steel 1.4408 (CF8M)
Disc : stainless steel 1.4404 (AISI 316L)
Stem: duplex steel 1.4462 (2205)
Seat: PTFE reinforced by 25% glass fibre
Pivot: stainless steel 1.4404 (316L)
Temperature range: -50°C to +200°C
Pressure range: 25 bar
