Reference : BEKOMAT 13
Brand reference : 2000021
Catalog gross price :
€568.00
Tax excluded 21.00 %
| Specifications | Electric drain |
| Body material | Aluminum |
| Input connection | G1/2" |
| Output connection | G1/2" |
| Actual flow at 7 bar | 300 m³/min |
| PN | 16 |
| Customs duty number | 8481-8099 |
| Gross weight (kg) | 2,1 |
| Eclass | 27290000 |
| Country of origin | DE |
| UNSPSC Code | 27131700 |

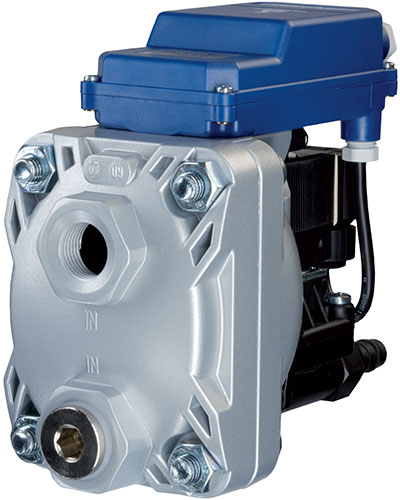

BEKO electric condensate drain:
- Maximum capacity if used with compressor: 30 m³/min
- Maximum capacity if used with dryer: 60 m³/min
- Maximum capacity if used with filter: 300 m³/min
- Aluminum body
- Supply voltage: 230V 50Hz
- Operating pressure: 0.8 to 16 bar
- Compatibility - fluids: oily condensates
- Connection type: Tapped
- Inlet connection: 2 x G1/2’’F
- Outlet connection (evacuation): 1 x G1/2’’M
- Inner diameter of the hose: 13 mm
- Operating temperature: From +1 to 60°C
- Compatible wear part kit: 2000067
- Compatible bracket: 2000036
- Maximum capacity if used with compressor: 30 m³/min
- Maximum capacity if used with dryer: 60 m³/min
- Maximum capacity if used with filter: 300 m³/min
- Aluminum body
- Supply voltage: 230V 50Hz
- Operating pressure: 0.8 to 16 bar
- Compatibility - fluids: oily condensates
- Connection type: Tapped
- Inlet connection: 2 x G1/2’’F
- Outlet connection (evacuation): 1 x G1/2’’M
- Inner diameter of the hose: 13 mm
- Operating temperature: From +1 to 60°C
- Compatible wear part kit: 2000067
- Compatible bracket: 2000036
