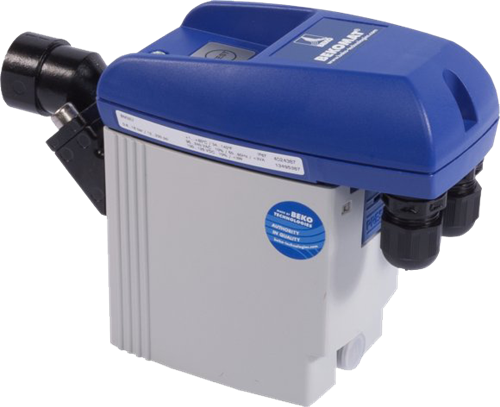

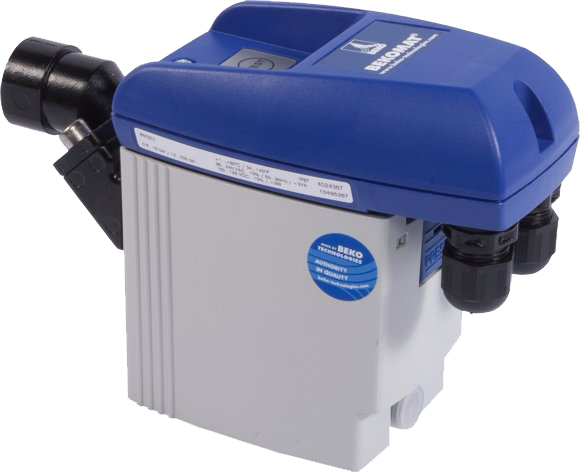

Electric drip leg drain up to 50 m³/min - 95-240VAC/100-125VAC - 16bar - In: G1/2"/Out: G1/4"

Reference : BEKOMAT 32U

Brand reference : 4024387

Catalog Price :

265.42
Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)

5

Stock Belgium (Barchon)

-

Stock Belgium (Chaineux)

-
Manufacturer stock -
Specifications Electric drain
Body material Aluminum
Input connection G1/2"
Output connection G1/4"
Actual flow at 7 bar 50 m³/min
PN 16
Customs duty number 8481-8099
Gross weight (kg) 1,2
Eclass 27290000
Country of origin DE
UNSPSC Code 27131700
BEKO electric condensate drain:
- Maximum capacity if used with compressor: 5 m³/min
- Maximum capacity if used with dryer: 10 m³/min
- Maximum capacity if used with filter: 50 m³/min
- Aluminum body
- With potential-free contact
- Supply voltage: 95 to 240 VAC (50-60Hz) / 100 to 125VDC
- Operating pressure: 0.8 to 16 bar
- Compatibility - fluids: Oily or non-oily condensates, aggressive
- Connection type: Tapped
- Inlet connection: 1 x G1/2’’F
- Outlet connection (evacuation): 1 x G1/4’’M
- Inner diameter of the hose: 8 to 10 mm
- Operating temperature: From +1 to 60°C
- Compatible wear part kit: 4023571
- Compatible bracket: 4010105
