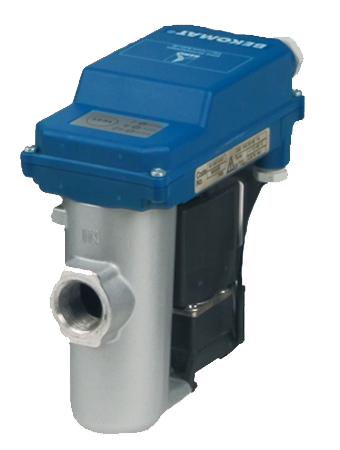

Electric drip leg drain up to 65 m³/min - 230V 50Hz - 16bar - In: G1/2"/Out: G3/8"

Reference : BEKOMAT 12

Brand reference : 2000018

Catalog Price :

389.00
Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)

-

Stock Belgium (Barchon)

-

Stock Belgium (Chaineux)

-
Manufacturer stock -
Usual lead time :
6-10 working days
Specifications Electric drain
Body material Aluminum
Input connection G1/2"
Output connection G3/8"
Actual flow at 7 bar 65 m³/min
PN 16
Customs duty number 8481-8099
Gross weight (kg) 0,8
Eclass 27290000
Country of origin DE
UNSPSC Code 27131700
BEKO electric condensate drain:
- Maximum capacity if used with compressor: 6.5 m³/min
- Maximum capacity if used with dryer: 13 m³/min
- Maximum capacity if used with filter: 65 m³/min
- Aluminum body
- Supply voltage: 230V 50Hz
- Operating pressure: 0.8 to 16 bar
- Compatibility - fluids: oily condensates
- Connection type: Tapped
- Inlet connection: 1 x G1/2’’F
- Outlet connection (evacuation): 1 x G3/8’’M
- Inner diameter of the hose: 10 to 13 mm
- Operating temperature: From +1 to 60°C
- Compatible wear part kit: 2000049
- Compatible bracket: 2000035
