Reference : DFPD-20-RP-90-LS60-F03
Catalog Price :
€155.86
Tax excluded 21.00 %
Assemblage de composants en stock, nécessite un délai supplémentaire jusqu’à 3 jours ouvrables départ de notre magasin
| Body material | Aluminium moulé sous pression |
| Sealing | NBR |
| Operated | Simple effet - NO |
| Operating torque, pressure opening at 6 bar | 14,7 Nm |
| Operating torque, spring closure | 14,3 Nm |
| Adapter plate | F03 |
| Output star | 9 mm |
| Customs duty number | 8412-3900 |
| Gross weight (kg) | 0 |
| Eclass | 27290000 |
| UNSPSC Code | 27131700 |

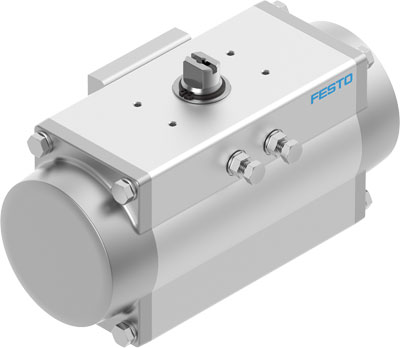

FESTO rack and pinion pneumatic actuators Series DFPD
- Size: 20
- Rotation angle: 90°, adjustable -5° to +5° and +80° to +95
- Single acting
- Opening torque by pressure at 6 bar: 14,7 /7,6 Nm
- Actuating torque closing by spring: 14.3 / 7.2 Nm
- Direction of rotation: CC Spring open/counterclockwise
- Piston material: Die-cast aluminium
- Compressed air supply connection G1/8" or according to NAMUR VDI/VDE 3845
- Valve interface to ISO 5211: F03
- Drive via 45° square 9mm x 9mm
- Temperature range: Standard: -20 °C to +80 °C
- Operating pressure from 2 to 8 bar
- ATEX II 2 GD, SIL2
- Size: 20
- Rotation angle: 90°, adjustable -5° to +5° and +80° to +95
- Single acting
- Opening torque by pressure at 6 bar: 14,7 /7,6 Nm
- Actuating torque closing by spring: 14.3 / 7.2 Nm
- Direction of rotation: CC Spring open/counterclockwise
- Piston material: Die-cast aluminium
- Compressed air supply connection G1/8" or according to NAMUR VDI/VDE 3845
- Valve interface to ISO 5211: F03
- Drive via 45° square 9mm x 9mm
- Temperature range: Standard: -20 °C to +80 °C
- Operating pressure from 2 to 8 bar
- ATEX II 2 GD, SIL2
