Reference : DFPD-240-RP-90-RS60-F0710
Brand reference : 8048138
Catalog Price :
€362.50
Tax excluded 21.00 %
| Body material | Aluminium moulé sous pression |
| Sealing | NBR |
| Operated | Simple effet - NF |
| Operating torque, pressure opening at 6 bar | 171,6 Nm |
| Operating torque, spring closure | 166,1 Nm |
| Adapter plate | F07/F10 |
| Output star | 22 mm |
| Customs duty number | 8412-3900 |
| Gross weight (kg) | 10,252 |
| Eclass | 27290000 |
| Country of origin | DE |
| UNSPSC Code | 27131700 |

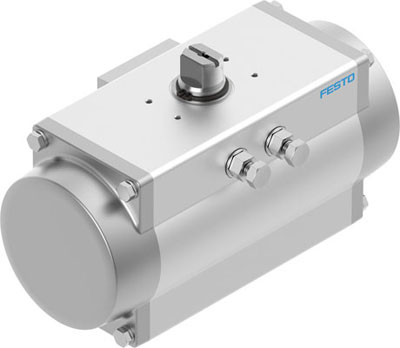

FESTO rack and pinion pneumatic actuators Series DFPD
- Size: 240
- Rotation angle: 90°, adjustable -5° to +5° and +80° to +95
- Single acting
- Opening torque by pressure at 6 bar: 171.6 / 89.5 Nm
- Closing torque by spring: 166.1 / 84 Nm
- Direction of rotation: CW Spring closed / clockwise
- Piston material: Die-cast aluminium
- Compressed air supply connection G1/4" or according to NAMUR VDI/VDE 3845
- Valve interface to ISO 5211: F07-F10
- Drive via 45° square 22mm x 22mm
- Temperature range: Standard: -20 °C to +80 °C
- Operating pressure from 2 to 8 bar
- ATEX II 2 GD, SIL2
- Size: 240
- Rotation angle: 90°, adjustable -5° to +5° and +80° to +95
- Single acting
- Opening torque by pressure at 6 bar: 171.6 / 89.5 Nm
- Closing torque by spring: 166.1 / 84 Nm
- Direction of rotation: CW Spring closed / clockwise
- Piston material: Die-cast aluminium
- Compressed air supply connection G1/4" or according to NAMUR VDI/VDE 3845
- Valve interface to ISO 5211: F07-F10
- Drive via 45° square 22mm x 22mm
- Temperature range: Standard: -20 °C to +80 °C
- Operating pressure from 2 to 8 bar
- ATEX II 2 GD, SIL2
