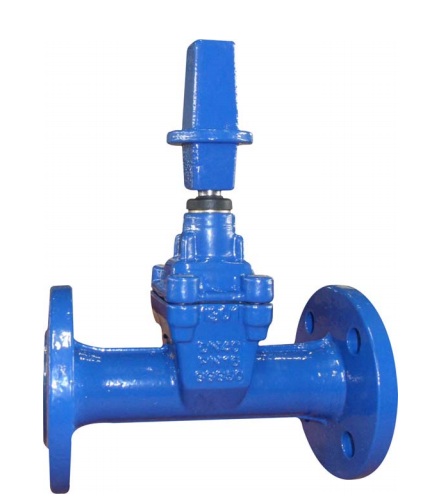

Non contractual picture
Product details Associated products Associated categories

Gate valve - GGG50 Cast Iron body - EPDM - DN150 - Flanges GN16 - (+)110°C - Manually operated

Reference : GAFM.026.150

Catalog gross price :

€592.15
Tax excluded 21.00 %
Stock Belgique (Liège) -
Stock Belgique (Hainaut) -
Stock Luxembourg (Troisvierges) -
Stock usine Quantity and short lead time
to be confirmed on request
Usual lead time :
6-10 working days
Body material GGG50 cast iron
Sealing EPDM
Type of connection With flanges
Diameter of connection DN150
GN 16
PN 16
Fluid working Temp (-)10°C to (+)110°C
Operated Manually
Specifications 2 ways - Non-rising stem and handwheel
Compatibility - fluids For supply, sanitation, water treatment and irrigation networks
Customs duty number 8481-8061
Gross weight (kg) 35,92
Eclass 37010000
Country of origin CN
UNSPSC Code 40140000
DUCTILE IRON GATE V. 184 PN10/16 DN150GGG50 EPDM wedge CWC + Square drive
