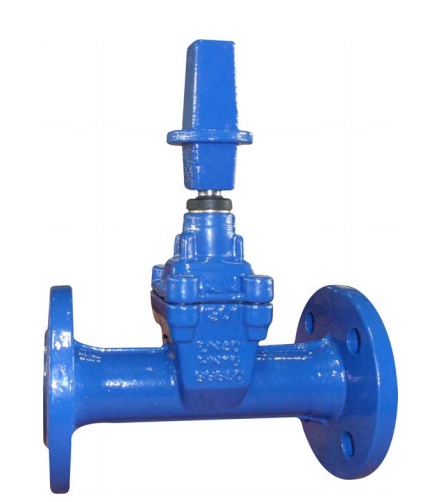

Gate valve - GGG50 Cast Iron body - EPDM - DN40 - Flanges GN16 - (+)110°C - Manually operated

Reference : GAFM.026.040

Catalog gross price :

€167.78

Tax excluded 21.00 %

Stock Belgique (Liège)	-
Stock Belgique (Hainaut)	-
Stock Luxembourg (Troisvierges)	-
Stock usine	Quantity and short lead time to be confirmed on request

Usual lead time :
6-10 working days

Body material	GGG50 cast iron
Sealing	EPDM
Type of connection	With flanges
Diameter of connection	DN40
GN	16
PN	16
Fluid working Temp	(-)10°C to (+)110°C
Operated	Manually
Specifications	2 ways - Non-rising stem and handwheel
Compatibility - fluids	Pour réseaux d'adduction, d'assainissement, de tra
Customs duty number	8481-8061
Gross weight (kg)	8,05
Eclass	37010000
Country of origin	CN
UNSPSC Code	40140000

Description
Documents

DUCTILE IRON GATE V. 184 PN10/16 DN40 GGG50 EPDM wedge CWC + Square drive

4224-catalogue méca-fluid (v.3.2019.fr)_page111.pdf
