Reference : 1435000Z10001
Brand reference : 88092764
Catalog gross price :
€993.84
Tax excluded 21.00 %
| Customs duty number | 9032-8900 |
| Gross weight (kg) | 1,565 |
| Eclass | 27220000 |
| UNSPSC Code | 31251500 |

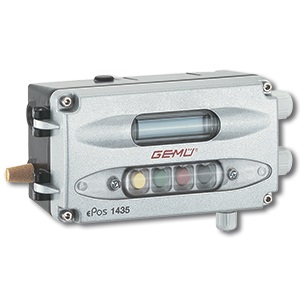

GEMU TYPE 1435 Digital Electropneumatic Positioner
- Control function: for single-acting actuator
- WITHOUT 4-20 mA current output option
- Maximum air flow: 50 l/min
- Supply voltage: 24V DC -5/+10%
- Analog input signal: 0/4-20 mA - 0-10 V
- Electrical connections via cable gland
- Ambient temperature range: 0°C to +60°C
- Protection rating: IP65
- G 1/4" threaded pneumatic connections
- Adjustable speed via exhaust restrictors
- Air supply pressure: 0 to 6 bar
- Control function: for single-acting actuator
- WITHOUT 4-20 mA current output option
- Maximum air flow: 50 l/min
- Supply voltage: 24V DC -5/+10%
- Analog input signal: 0/4-20 mA - 0-10 V
- Electrical connections via cable gland
- Ambient temperature range: 0°C to +60°C
- Protection rating: IP65
- G 1/4" threaded pneumatic connections
- Adjustable speed via exhaust restrictors
- Air supply pressure: 0 to 6 bar
