Reference : E290D75B0DA0000
Catalog Price :
€325.00
Tax excluded 21.00 %
| Body material | Bronze |
| Sealing | PTFE |
| Type of connection | Threaded Female |
| Diameter of connection | 1''1/4 |
| PN | 16 |
| Control pressure | 2,5 to 10 bar |
| Fluid working Temp | (-)10°C to (+)184°C |
| Operated | NC single-acting air operated |
| Control head | 90 mm |
| Specifications | 2-way - Without bellows |
| Customs duty number | 8481-2090 |
| Gross weight (kg) | 0 |
| Eclass | 27290000 |
| Country of origin | PL |
| UNSPSC Code | 27131700 |

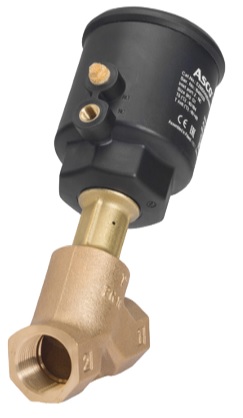

PRESSURE OPERATED ASCO VALVE SERIES 290 VALVE 2/2 NC BRONZE ENTRY UNDER DISC G.1 1/4 D=32 OPERATOR D=90 PILOT PRESSURE 2,5 BAR
