Reference : E290D0550DA0000
Catalog gross price :
€270.82
Tax excluded 21.00 %
| Body material | Bronze |
| Sealing | PTFE |
| Type of connection | Threaded Female |
| Diameter of connection | 1''1/4 |
| PN | |
| Control pressure | 4,5 à 10 bar |
| Fluid working Temp | (-)10°C to (+)184°C |
| Operated | NC single-acting air operated |
| Control head | 63 mm |
| Specifications | 2-way - Without bellows |
| Customs duty number | 8481-2090 |
| Gross weight (kg) | 0 |
| Eclass | 27290000 |
| Country of origin | PL |
| UNSPSC Code | 27131700 |

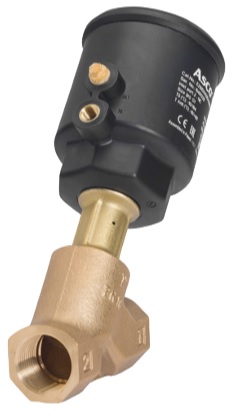

Angle-seat valve Asco:
- Bronze body
- PTFE valve plug sealing
- PTFE body gasket
- Threaded connection
- Female–Female 1"1/4
- PN16
- Flow coefficient (Kv): 420 l/min
- Allowable differential pressure: min 0 bar / max 6 bar
- Operation: 2-way
- Normally closed
- Pneumatically actuated
- Pilot pressure: 4.5 to 10 bar
- Actuator head: 63 mm
- Ambient temperature range: (-)10°C to (+)60°C
- Fluid service temperature range: (-)10°C to (+)184°C
- With visual position indicator
- Water hammer resistant
- Former reference: E290A016
- Bronze body
- PTFE valve plug sealing
- PTFE body gasket
- Threaded connection
- Female–Female 1"1/4
- PN16
- Flow coefficient (Kv): 420 l/min
- Allowable differential pressure: min 0 bar / max 6 bar
- Operation: 2-way
- Normally closed
- Pneumatically actuated
- Pilot pressure: 4.5 to 10 bar
- Actuator head: 63 mm
- Ambient temperature range: (-)10°C to (+)60°C
- Fluid service temperature range: (-)10°C to (+)184°C
- With visual position indicator
- Water hammer resistant
- Former reference: E290A016
