Important information about this product
This product is (or will soon) not be available anymore. Click here to be redirected to its counterpart.
| Body material | Bronze |
| Sealing | PTFE |
| Type of connection | Threaded Female |
| Diameter of connection | 1''1/2 |
| PN | 16 |
| Control pressure | Maximum 10 bar |
| Fluid working Temp | (-)10°C to (+)184°C |
| Operated | NO single-acting air operated |
| Control head | 63 mm |
| Specifications | 3 ways - Without bellows |
| Compatibility - fluids | For air and gas of groups 1 & 2, water, oils, liquids of groups 1 & 2 and steam |
| Customs duty number | 8481-2090 |
| Gross weight (kg) | 3,798 |
| Eclass | 27290000 |
| Country of origin | FR |
| UNSPSC Code | 27131700 |

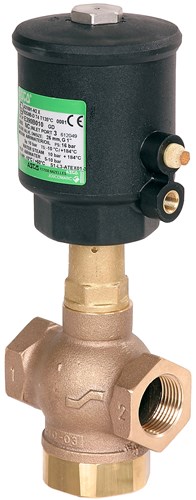

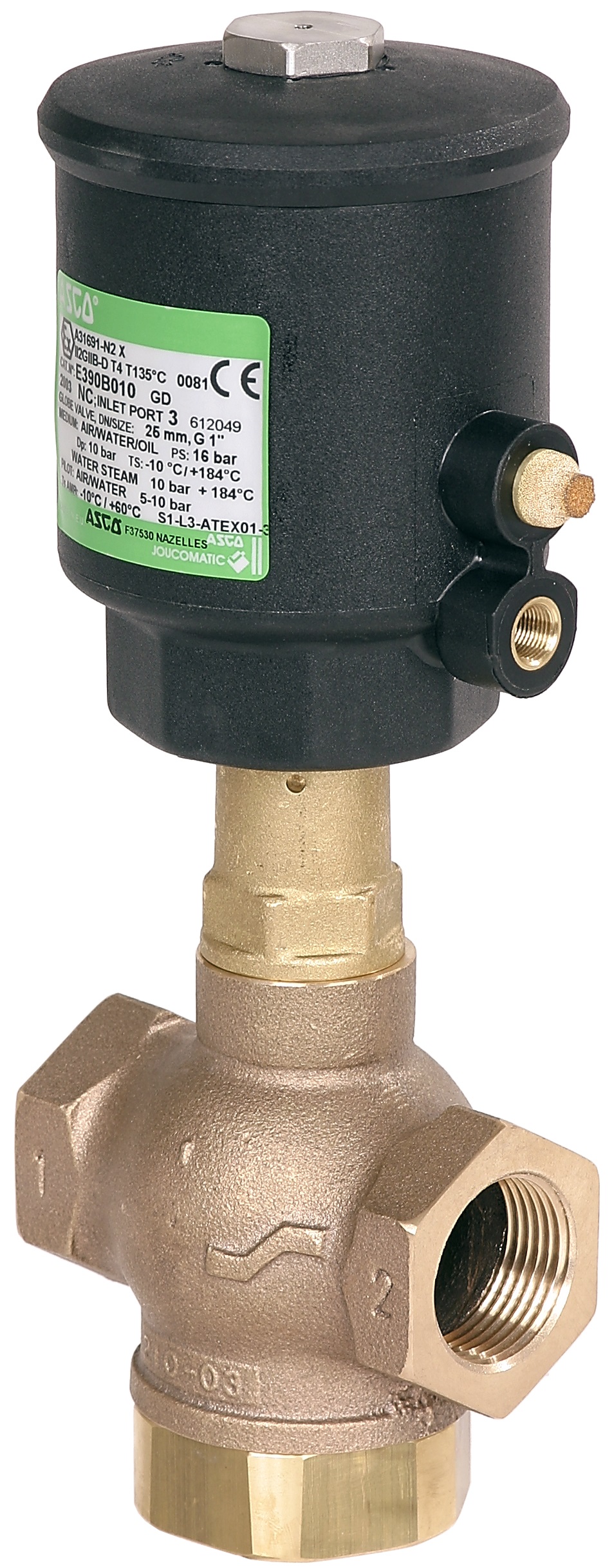

VANNE ASCO E390A032 3/2 NO CORPS BRONZE DN 40 G1 1/2 TETE DE CDE D=63, PRESSION PILOTAGE MAXI 10B
