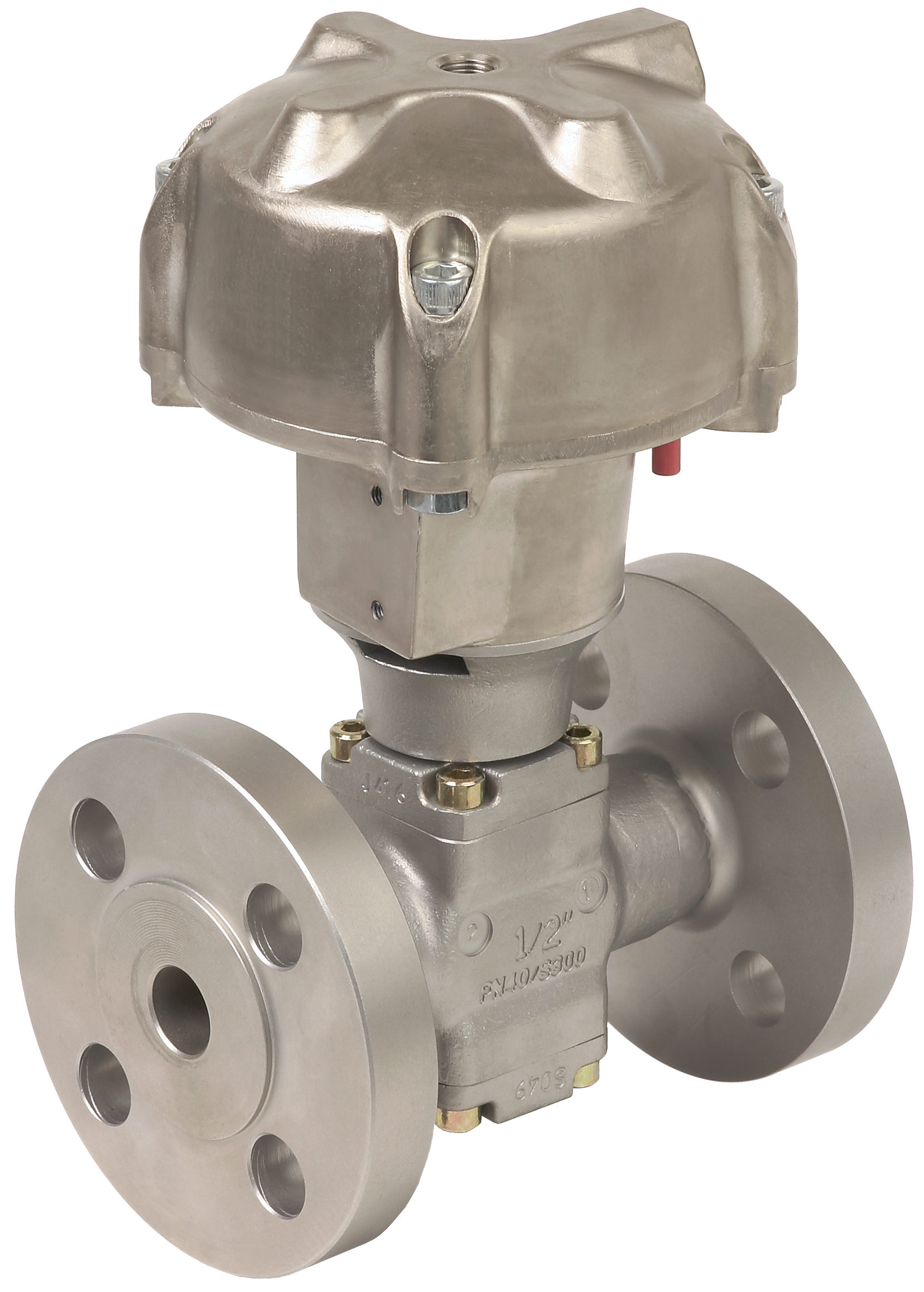

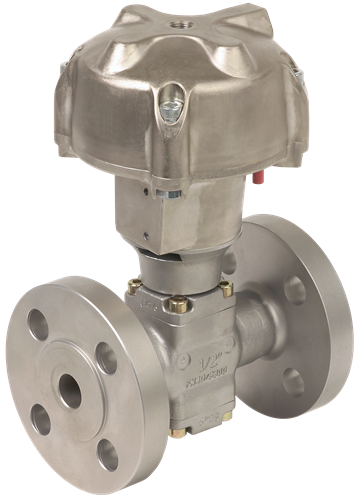

Reference : T298B08MDEA0000
Catalog Price :
€3,777.15
Tax excluded 21.00 %
| Body material | 304 Stainless Steel |
| Sealing | Metal |
| Type of connection | With flanges |
| Diameter of connection | DN50 |
| GN | 40 |
| PN | 40 |
| Control pressure | 0 to 10 bar |
| Fluid working Temp | (-)10°C to (+)250°C |
| Operated | NC single-acting air operated |
| Control head | 200 mm |
| Specifications | 2-way - Without bellows |
| Compatibility - fluids | For charged steam and superheated water |
| Gross weight (kg) | 0 |
| Eclass | 27290000 |
| UNSPSC Code | 27131700 |
