Reference : LAT.LUB.01.12
Catalog Price :
€717.20
Tax excluded 21.00 %
| Body material | 316L Stainless Steel |
| Piston seal material | FPM (Viton®) |
| Tank material | Stainless Steel 316L |
| Total lubricant tank capacity | 200 cm³ |
| Diameter of connection | 1/2" |
| Max flow (ANR) | 2400 l/min |
| Max input pressure at 23°C | 50 bar |
| Set pressure | 7 bar |
| ?P load loss | 0,33 bar |
| Fluid working Temp | (-)20°C to (+)80°C |
| Compatibility - fluids | Compressed air |
| Customs duty number | 8481-1005 |
| Gross weight (kg) | 1,9 |
| Eclass | 27290000 |
| UNSPSC Code | 27131700 |

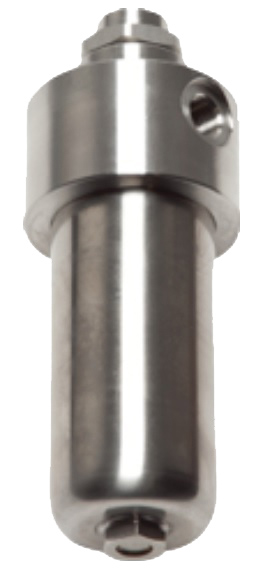

Mist lubricator, G 1/2", 1.4404
