Reference : LIAX.004.004
Catalog Price :
€77.15
Tax excluded 21.00 %
| Body material | 304 Stainless Steel |
| Specifications | Mouting brackets for position detectors for manual valves |
| Adapter plate | F04 |
| Customs duty number | 8536-5019 |
| Gross weight (kg) | 0,302 |
| Eclass | 27220000 |
| Country of origin | DE |
| UNSPSC Code | 31251500 |

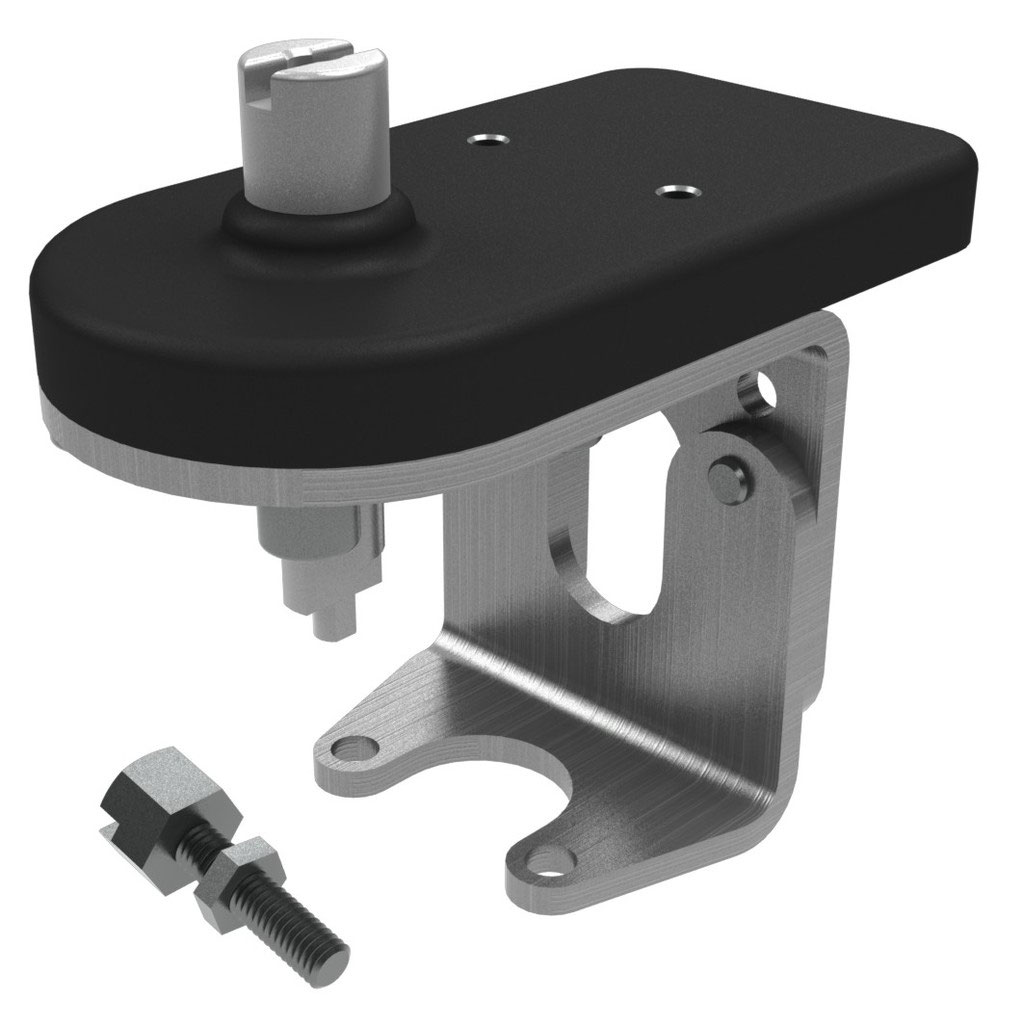

Adjustable mounting bracket kit for double inductive position detectors for installation on manual quarter-turn valves - for mounting plane ISO 5211 F04 - drive screw M5 length 60mm - materials: sensor plate in Vestamid (PA 12), conductor / bracket and nut in stainless steel 304 / driver and shaft in stainless steel 303 - temperature range -30°C to +80°C
