| Supplier series | RA/802000/M |
| Standard | ISO 15552 |
| Diameter | 32 mm |
| Stroke | 1000 |
| Specifications | Double acting |
| Body material | Anodized aluminum |
| Rod material | Stainless Steel |
| Seal material | Polyurethane |
| Operating pressure | 16 bar |
| Fluid working Temp | (-)20°C to (+)80°C |
| Gross weight (kg) | 0 |
| Eclass | 27290000 |
| UNSPSC Code | 27131700 |

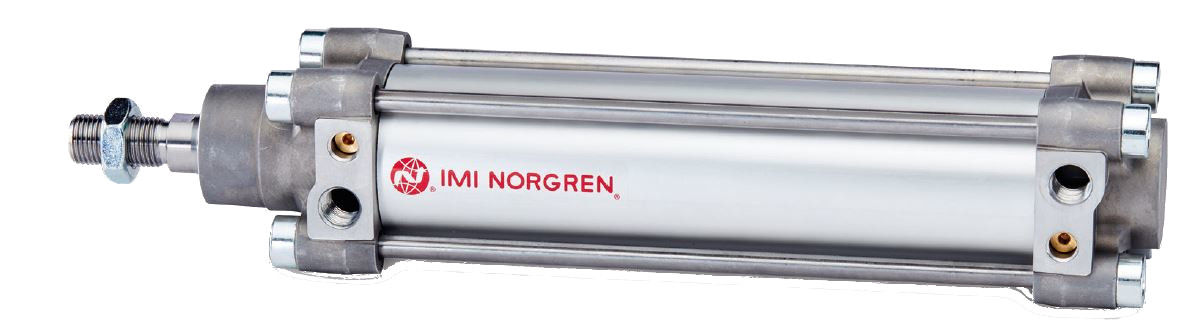

DA-P. CYLINDER
