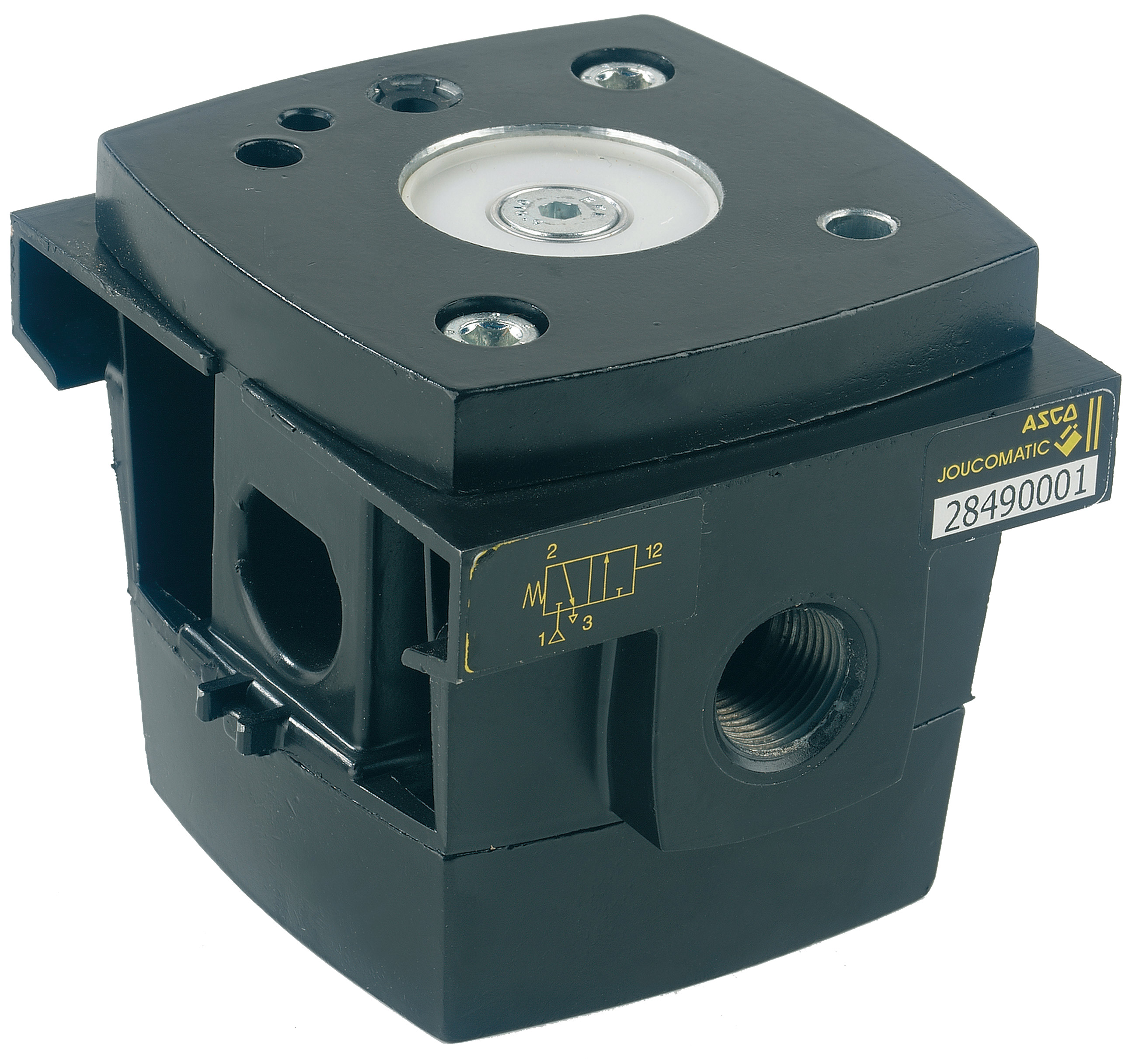

Poppet valve - 3/2 NO - G3/8" - Air/solenoid air operated - Spring return - With gaskets

Reference : 28490004

Catalog gross price :

€815.73

Tax excluded 21.00 %

Stock Belgique (Liège)	-
Stock Belgique (Hainaut)	-
Stock Luxembourg (Troisvierges)	-
Stock usine	Quantity and short lead time to be confirmed on request

Usual lead time :
11-15 working days

Function	3/2 Normally Opened
Operated	Air operated or with pilot
Return	Spring
Specifications	In-line
Body material	Zamak
Joints	With
Sealing	NBR and PU
Diameter of connection	3/8"
Flow at 6 bar (ANR)	4500
Operating pressure	2 to 12 bar
Control pressure	2 to 10 bar (pilote190) - 2 to 12 bar (pilote 192)
Fluid working Temp	(-)10°C to (+)60°C
Compatibility - fluids	Air or neutral gas, filtered, lubricated or not
Customs duty number	8481-2090
Gross weight (kg)	1,315
Eclass	27290000
Country of origin	FR
UNSPSC Code	27131700

Description
Documents

TAPPED POPPET VALVE 3/2 VALVE BODY SUBASSEMBLY 3/2.NO SERIES 284 TAPPED G 3/8

10389-catalogue méca-fluid (v.3.2019.fr)_page337.pdf
