Reference : OVTX.009.054
Brand reference : 417 T GF 0 32 F F 32 32 FKM 2-12
Catalog Price :
€999.95
Tax excluded 21.00 %
| Body material | 316 Stainless Steel |
| Sealing | FPM (Viton®) |
| Type of connection | Threaded Female |
| Input connection | 1"1/4 |
| Output connection | 1"1/4 |
| PN | 20 |
| Tare pressure | Not tared |
| Fluid working Temp | (-)20°C to (+)200°C |
| Specifications | Proportional opening |
| Compatibility - fluids | For (non-) neutral liquids, air and (non-) neutral gases |
| Customs duty number | 8481-4090 |
| Gross weight (kg) | 1,9 |
| Eclass | 37010000 |
| Country of origin | DE |
| UNSPSC Code | 40140000 |

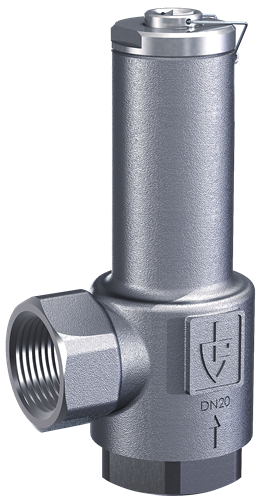

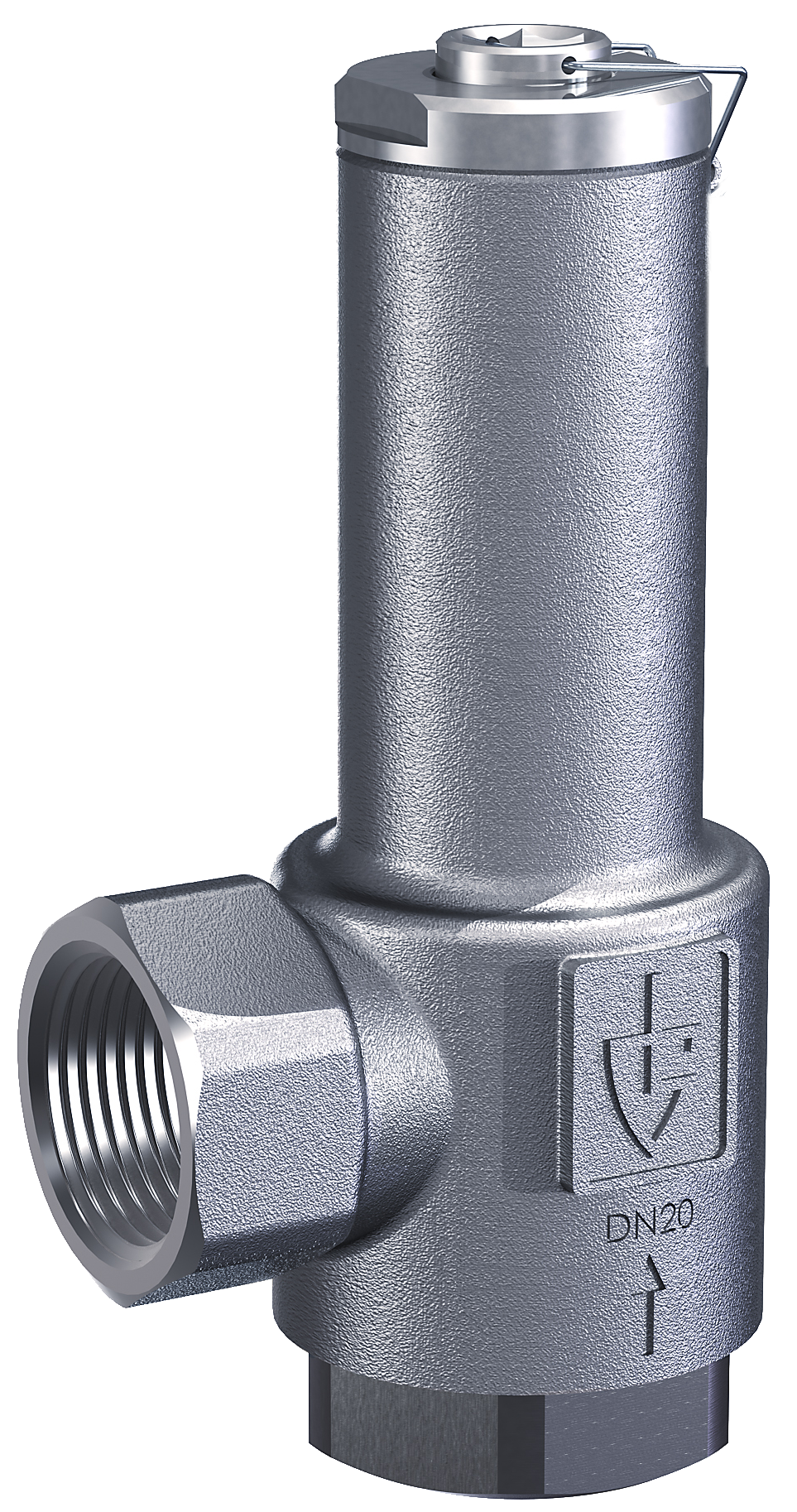

STAINLESS ST. OVERFLOW V. 417F 1"1/4 2-12bar CF8M/FKM seat
