Reference : SAFX.003.025.045
Catalog Price :
€1,356.74
Tax excluded 21.00 %
| Body material | GG25 cast iron |
| Sealing | EPDM |
| Type of connection | With flanges |
| Input connection | DN25 |
| Output connection | DN32 |
| GN | 16 |
| Output GN | 10/16 |
| PN | 16 |
| Tare pressure | 4,5 bar |
| Fluid working Temp | (-)10°C to (+)120°C |
| Specifications | With closed hood |
| Compatibility - fluids | For water |
| Customs duty number | 8481-4010 |
| Gross weight (kg) | 9 |
| Eclass | 37010000 |
| Country of origin | PL |
| UNSPSC Code | 40140000 |

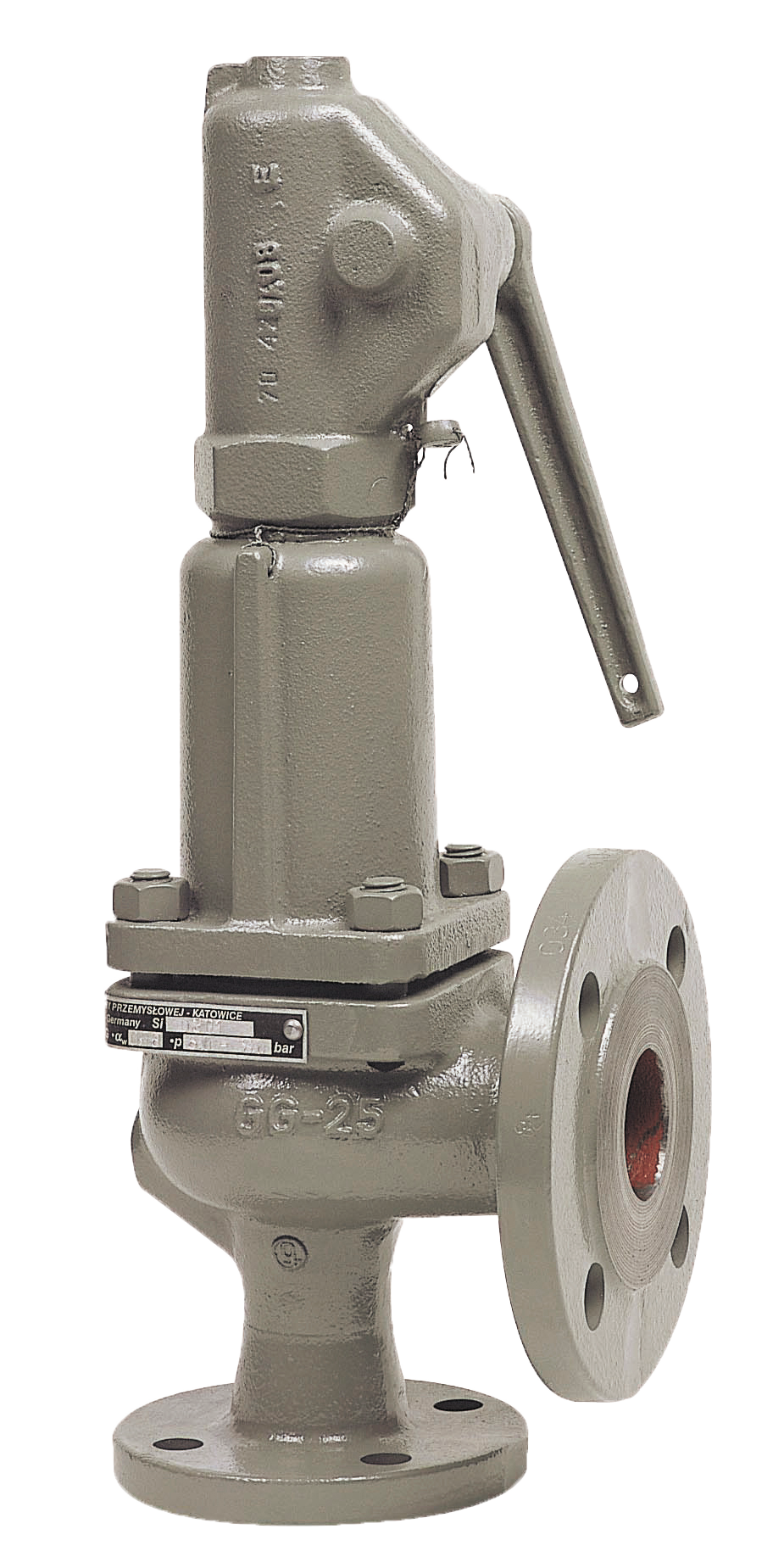

C.IRON SAFETY V. WATER DN25 2.5-3.6b PN16 / TS : -10/+120°C
