Reference : 3470001
Catalog Price :
€143.00
Tax excluded 21.00 %

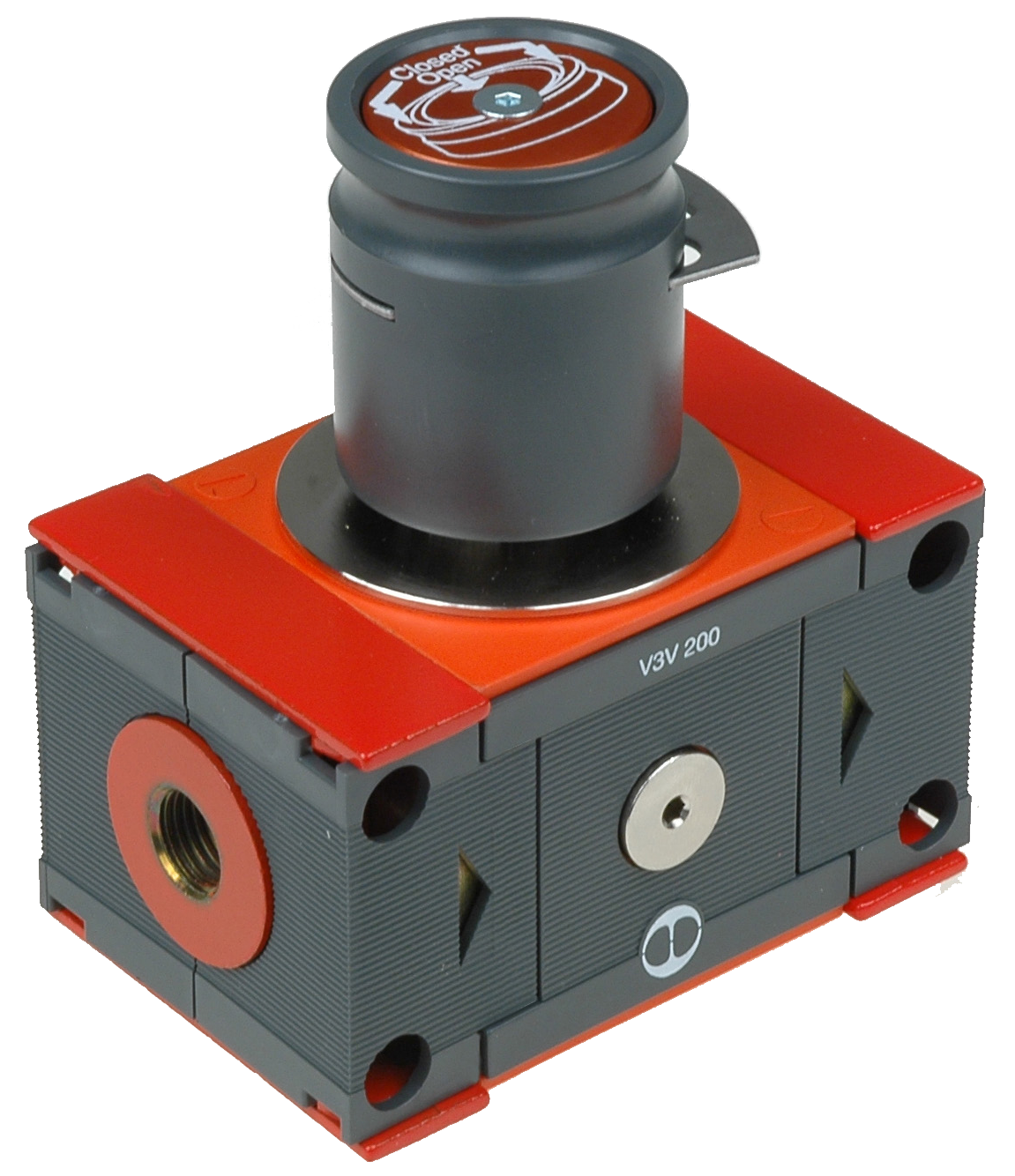

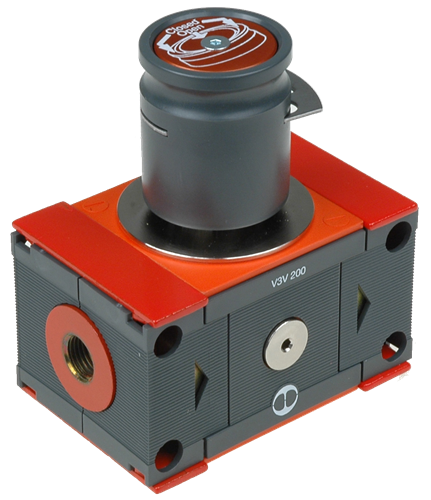

| Supplier series | V3V 200 |
| Operated | Manually |
| Body material | Technopolymere |
| Piston seal material | NBR |
| Diameter of connection | 1/4" |
| Max flow (Normolitres) | 2400 Nl/min |
| Max input pressure at 23°C | 13 bar |
| Set pressure | 6,3 bar |
| ?P load loss | 0,5 bar |
| Fluid working Temp | (-)10°C to (+)50°C |
| Compatibility - fluids | Air or neutral gas |
| Customs duty number | 8421-9900 |
| Gross weight (kg) | 0,825 |
| Eclass | 27290000 |
| Country of origin | IT |
| UNSPSC Code | 27131700 |
