Reference : 7030012300
Catalog Price :
€187.72
Tax excluded 21.00 %

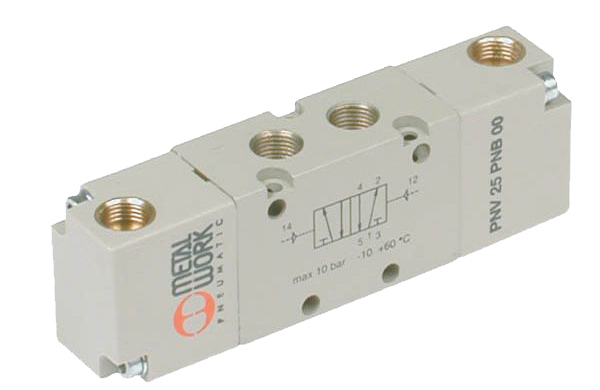

| Function | 5/3 Bistable centre opened to pressure |
| Operated | Air operated |
| Return | Spring at centre |
| Body material | Aluminum |
| Joints | With |
| Diameter of connection | 1/2" |
| Max flow (Normolitres) | 4600 Nl/min |
| Operating pressure | Vacuum to 10 bar |
| Control pressure | 1 to 10 bar |
| Fluid working Temp | (-)10°C to (+)60°C |
| Compatibility - fluids | Air or neutral gas, filtered, lubricated or not |
| Gross weight (kg) | 0 |
| Eclass | 27290000 |
| UNSPSC Code | 27131700 |
