Reference : L11PA452OG00000
Catalog Price :
€130.42
Tax excluded 21.00 %

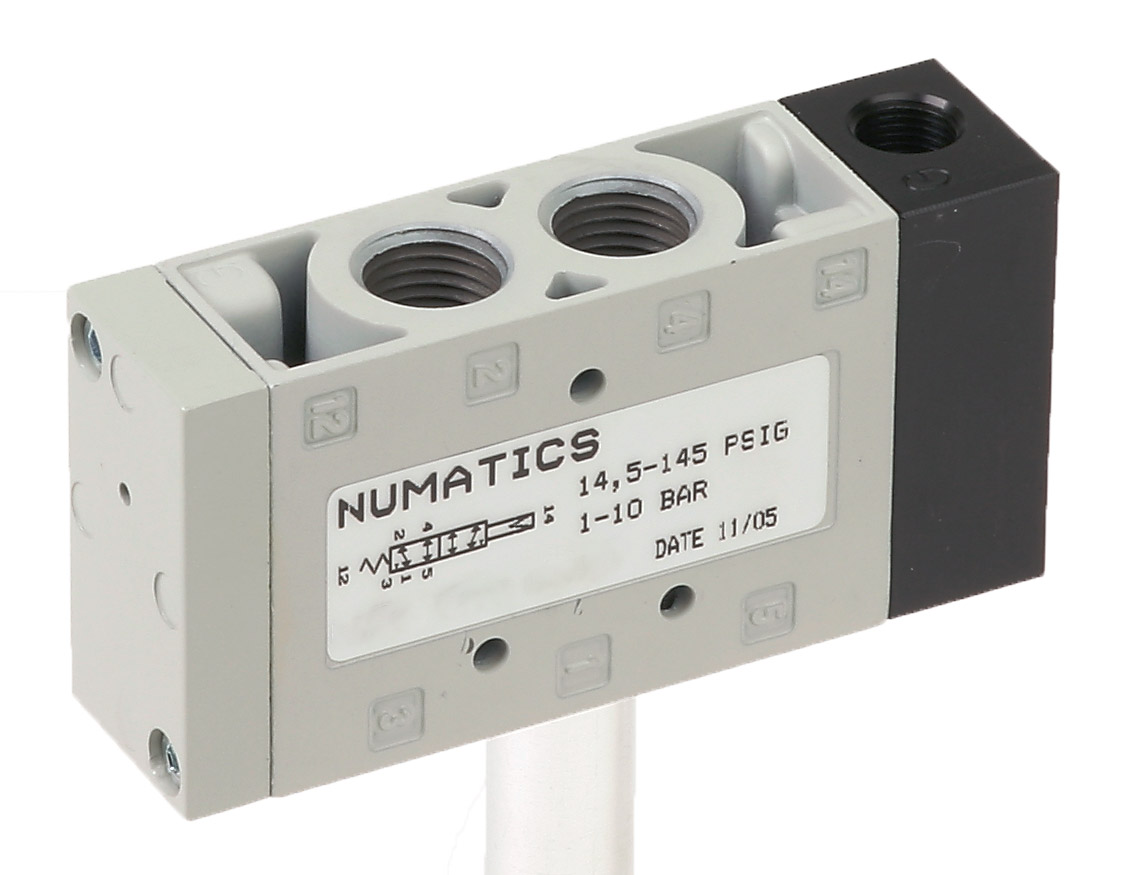

| Function | 5/2 Monostable |
| Operated | Air operated |
| Return | Spring |
| Body material | Anodized aluminum peinted |
| Joints | Without |
| Diameter of connection | 1/8" |
| Flow at 6 bar (ANR) | 1000 |
| Operating pressure | Vacuum to 10 bar |
| Control pressure | 1 to 10 bar |
| Fluid working Temp | (-)20°C to (+)80°C |
| Compatibility - fluids | Air or neutral gas, filtered, lubricated or not |
| Customs duty number | 8481-2090 |
| Gross weight (kg) | 0,199 |
| Eclass | 27290000 |
| UNSPSC Code | 27131700 |
