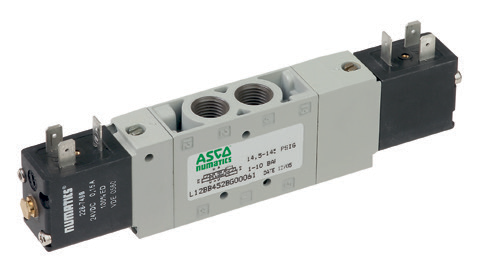

| Function | 5/3 Center closed |
| Operated | With pilot |
| Return | Spring at centre |
| Body material | Anodized aluminum peinted |
| Joints | Without |
| Diameter of connection | 3/8" |
| Voltage | 24/50 |
| Flow at 6 bar (ANR) | 1700 |
| Operating pressure | 1 to 10 bar intern pilot - Vacuum to 15 bar external pilot |
| Control pressure | 1 to 10 bar |
| Fluid working Temp | (-)20°C to (+)80°C |
| Compatibility - fluids | Air or neutral gas, filtered, lubricated or not |
| Customs duty number | 8481-2090 |
| Gross weight (kg) | 0,6 |
| Eclass | 27220000 |
| Country of origin | PL |
| UNSPSC Code | 31251500 |
