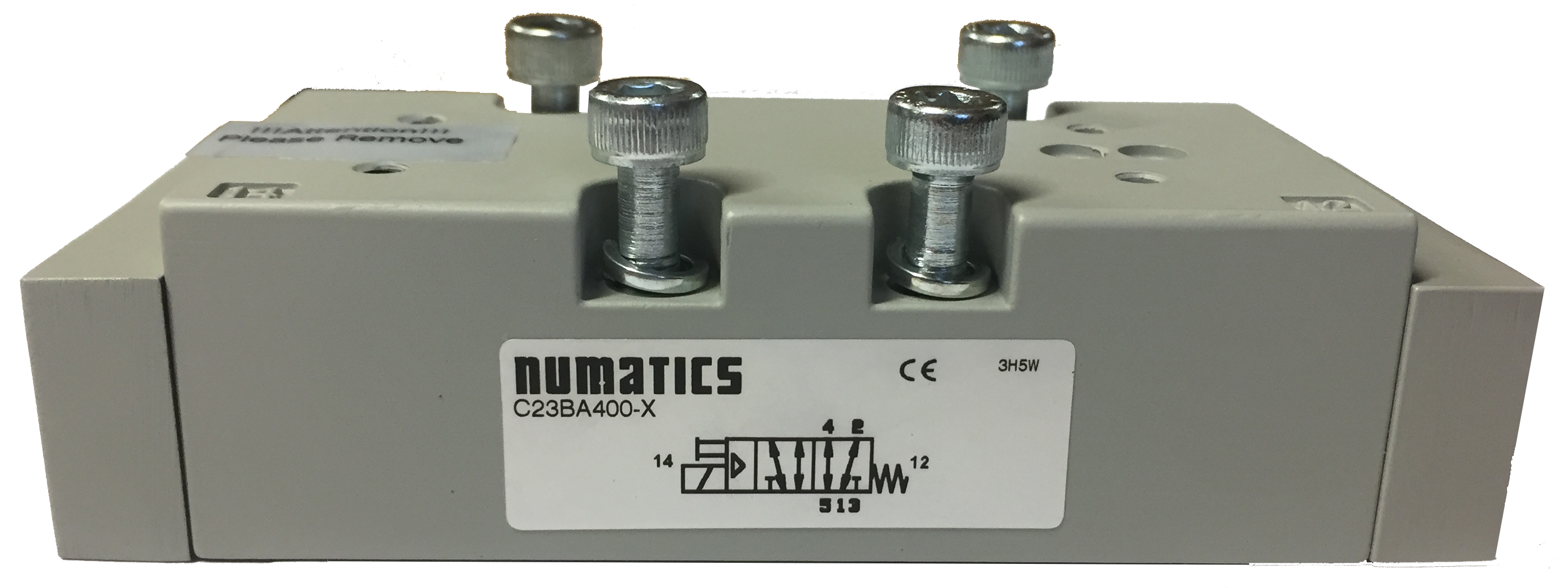

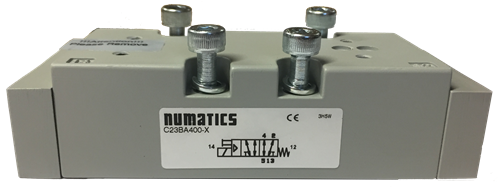

Spool valve on subbase - 5/2 Mono - Electro-pneumatic - Spring return - No gasket

Name: Spool valve on subbase - 5/2 Mono - Electro-pneumatic - Spring return - No gasket
Brand: Asco
SKU: C23BA400-X
Price: 277.92 EUR
Availability: InStock

Reference : C23BA400-X

Catalog gross price :

€277.92

Tax excluded 21.00 %

Stock Belgique (Liège)	-
Stock Belgique (Hainaut)	-
Stock Luxembourg (Troisvierges)	2
Stock usine	Quantity and short lead time to be confirmed on request

Function	5/2 Monostable
Operated	With pilot
Return	Spring
Standard	ISO 2
Body material	Anodized aluminum peinted
Joints	Without
Flow at 6 bar (ANR)	2400
Operating pressure	1 to 10 bar intern pilot - Vacuum to 21 bar external pilot
Control pressure	1 to 10 bar
Fluid working Temp	(-)10°C to (+)60°C
Compatibility - fluids	Air or neutral gas, filtered, lubricated or not
Customs duty number	8481-2090
Gross weight (kg)	0,49992
Eclass	27220000
Country of origin	PL
UNSPSC Code	31251500
