Reference : SCG551A017MS.230/50
Catalog Price :
€174.01
Tax excluded 21.00 %
Assemblage de composants en stock, nécessite un délai supplémentaire jusqu’à 3 jours ouvrables départ de notre magasin
| Function | 5/2 Monostable |
| Operated | With pilot |
| Return | Spring |
| Body material | Anodized aluminum black |
| Joints | With |
| Diameter of connection | 1/4" |
| Voltage | 230/50 |
| Flow at 6 bar (ANR) | 860 |
| Operating pressure | 2 to 10 bar |
| Control pressure | 2 to 10 bar |
| Fluid working Temp | (-)25°C to (+)60°C |
| Compatibility - fluids | Air or neutral gas, filtered, lubricated or not |
| Customs duty number | 8481-2090 |
| Gross weight (kg) | 0,374 |
| Eclass | 27220000 |
| Country of origin | PL |
| UNSPSC Code | 31251500 |

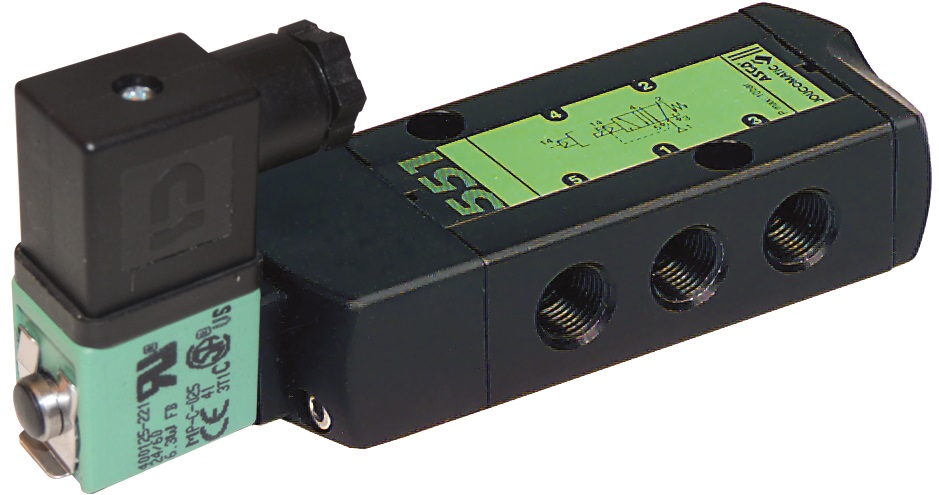

ASCO Series 551 In-Line Spool Solenoid Valve
- 5/2 function, monostable
- Electro-pneumatic control / spring return
- 1/4" G tapped supply and exhaust ports
- Flow rate (Qv at 6 bar): 860 l/min. (ANR)
- Flow coefficient (Kv): 0.75m³/h
- Black anodized aluminum body
- Sealing seals made of NBR and PUR
- Permissible differential pressure min. 2 bar / max. 10 bar
- Fluid temperature range from -25°C to +60°C
- Ambient temperature range from -25°C to +60°C
- Supplied with 230V 50-60Hz electric coil
- Electrical power 2.5 Watts
- Degree of protection: IP65
- Supplied with standard size 22 connector
- With manual control maintained
