Reference : 2118 04
Catalog Price :
€91.72
Tax excluded 21.00 %
| Customs duty number | 8481-8081 |
| Gross weight (kg) | 1,7 |
| Country of origin | ES |
| Eclass | 37010000 |
| UNSPSC Code | 40140000 |

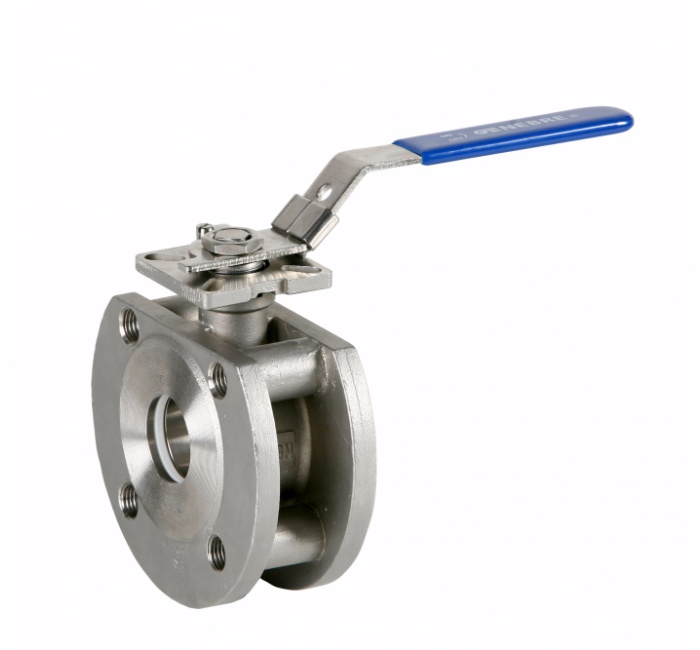

WAFER type ball valve
- One piece body
- DN15
- Full bore
- Mounting between flanges EN 1092 PN16
- Tapped holes
- Stainless steel body and sphere 1.4408
- Stainless steel 316 rod
- Seats made of PTFE + 15% glass fibers
- Maximum working pressure 16 bar
- Service temperature -20°C to +180°C
- Manual control by lockable lever
- Installation plan ISO 5211 - Square 9x9 mm - F03/F04
