Reference : AQ0005DE013PA000E0M - 17X17 45°
Brand reference : AQ0005DE013PA000E0M + DOUILLE USINEE
Price upon request
Contact us
| Body material | Aluminum cast iron |
| Sealing | IP68 |
| Fluid working Temp | (-)20°C to (+)60°C |
| Operated | Electrically |
| Operating torque, pressure opening at 6 bar | 50 Nm |
| Adapter plate | F05/F07 |
| Output star | 17 mm |
| Voltage | 24VDC |
| Customs duty number | 8481-8081 |
| Gross weight (kg) | 0 |
| Eclass | 27220000 |
| Country of origin | FR |
| UNSPSC Code | 31251500 |

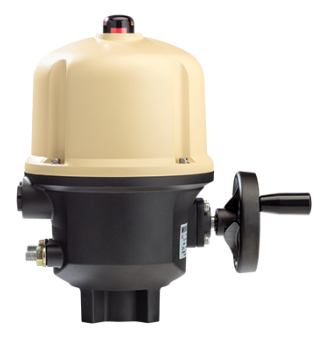

BERNARD CONTROLS waterproof quarter-turn actuator
- AQ range, model AQ5
- Maximum torque 50 Nm
- Pre-wired SWITCH version, on/off Class A
- Operating time for 90° : 13 seconds
- Flange connection ISO 5211: F05/F07
- 17mm x 17mm female drive square at 45°.
- Supply voltages: 24V DC
- Thermal protection
- Electrical power: 0.03 kW
- Rated current 2.5 A
- Starting current: 8 A
- Emergency manual operation via self-releasing handwheel
- Cast aluminium housing
- Protection class IP68 (2m/24h) / NEMA 4X
- Operating ambient temperature range -20 to +60°C
- Cable entry 2x M20
- 2 SPDT contacts (Open and Closed) + 2 potential free auxiliary contacts 250V AC-5A / 48V DC-2.5A (resistive load)
- 3D mechanical position indicator
- AQ range, model AQ5
- Maximum torque 50 Nm
- Pre-wired SWITCH version, on/off Class A
- Operating time for 90° : 13 seconds
- Flange connection ISO 5211: F05/F07
- 17mm x 17mm female drive square at 45°.
- Supply voltages: 24V DC
- Thermal protection
- Electrical power: 0.03 kW
- Rated current 2.5 A
- Starting current: 8 A
- Emergency manual operation via self-releasing handwheel
- Cast aluminium housing
- Protection class IP68 (2m/24h) / NEMA 4X
- Operating ambient temperature range -20 to +60°C
- Cable entry 2x M20
- 2 SPDT contacts (Open and Closed) + 2 potential free auxiliary contacts 250V AC-5A / 48V DC-2.5A (resistive load)
- 3D mechanical position indicator
