Reference : E220K403S1T00H1
Catalog Price :
€403.54
Tax excluded 21.00 %
| Supplier series | 220 |
| Specifications | NC (Normally closed) |
| Body material | Brass |
| Sealing | PFTE |
| Diameter of connection | 3/8'' |
| Full voltage code | 24/DC |
| Min differential pressure | 0.3 |
| Max differential pressure | 9 (steam) / 10 (water) |
| Operated | Without manual control |
| Kv Flow rate (m³/h) | 3.8 |
| Fluid working Temp | (-20°C to 173°C) |
| Ambient Temp | (-20°C to 40°C) |
| Compatibility - fluids | Steam and hot water |
| Dimensions (mm) | 73 |
| Type of current | Direct (=) - DC |
| Voltage | 24V |
| Customs duty number | 8481-8087 |
| Gross weight (kg) | 1,008 |
| Eclass | 27220000 |
| Country of origin | PL |
| UNSPSC Code | 31251500 |

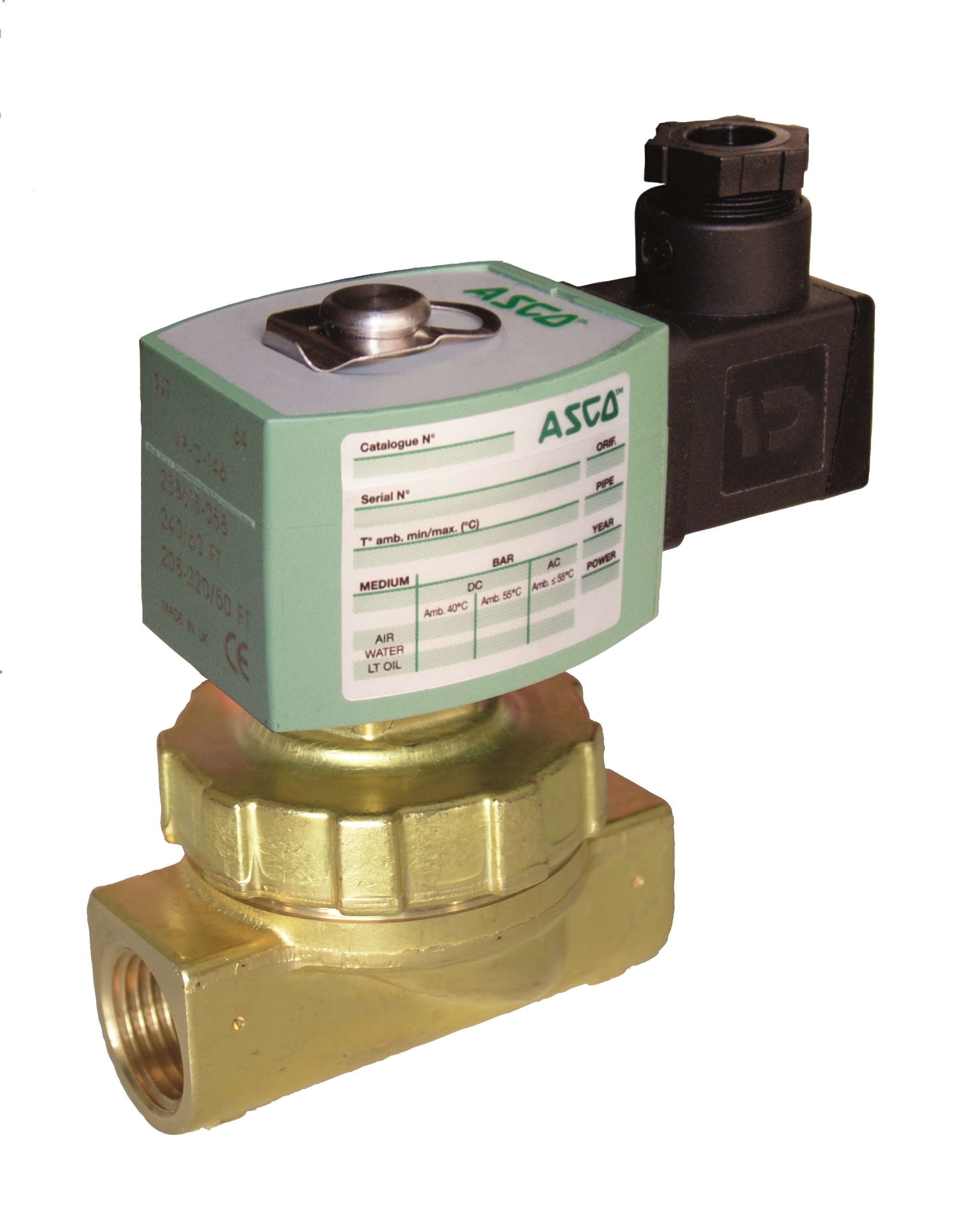

SOL. VALVE HOT WATER/STEAM (24/DC) 2/2NC G3/8 ORIF=12,7 BRASS BODY DIAPH. PTFE WITH COIL 10.1W CL.H WITH STANDARD DIN CONNECTOR ROTATABLE
