Reference : SCB223A012.24/DC
Catalog Price :
€3,451.02
Tax excluded 21.00 %
| Supplier series | 223 |
| Specifications | NC (Normally closed) |
| Body material | Stainless Steel |
| Sealing | NBR |
| Diameter of connection | 3/4'' |
| Full voltage code | 24/DC |
| Min differential pressure | 1.8 |
| Max differential pressure | 20 |
| Operated | Without manual control |
| Kv Flow rate (m³/h) | 6.7 |
| Fluid working Temp | (-20°C to 90°C) |
| Ambient Temp | (-20°C to 75°C) |
| Compatibility - fluids | High pressure |
| Dimensions (mm) | 91 |
| Type of current | Direct (=) - DC |
| Voltage | 24V |
| Customs duty number | 8481-8099 |
| Gross weight (kg) | 2,34365 |
| Eclass | 27220000 |
| Country of origin | NL |
| UNSPSC Code | 31251500 |

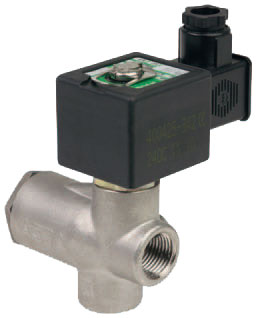

PILOT OPERATED SOLENOID VALVE - 2/2 NC - 3/4'' (DN20) - ORIFICE: 19,0 - STAINLESS STEEL - RESILIENT: PTFE - 11,2 W - COIL CLASS: F - IP65
